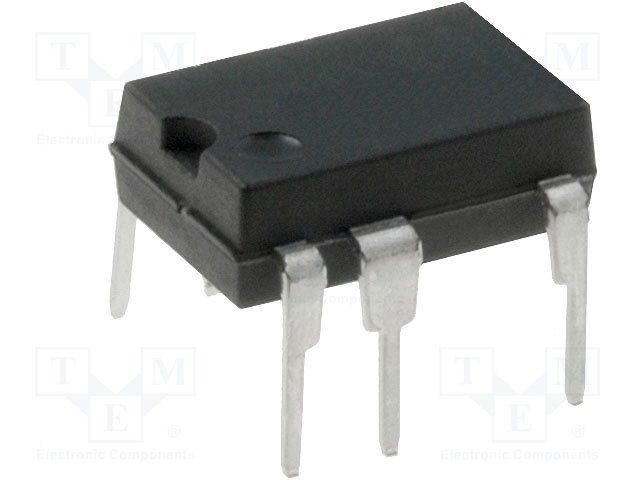

TOP253PN The Power Integrations TOP253PN is an integrated offline switcher designed for flyback topology. It offers a breakdown voltage of 700V and an output power of 25W.
Mfr Part #:

TOP253PN

Available from 1 distributors
Mfr Name: Power Integrations
Power Integrations
The Power Integrations TOP253PN is an integrated offline switcher designed for flyback topology. It offers a breakdown voltage of 700V and an output power of 25W.
✓ Total Stock: 15,000 pcs
$ Price Range: $0.75

TOP253PN Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
15,000 pcs
On Request
15000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TOP253PN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Duty Cycle
Fault Protection
Frequency
Height
Internal Switch(s)
Length
Mounting Type
Number of Outputs
Number of Pins
Operating Temperature
Output Current
Output Isolation
Power (Watts)
Supplier Device Package
Supplier Package
Topology
Voltage
Width
View Similar Products (0)

TOP253PN Description

Short technical summary and product information.

The Power Integrations TOP253PN is an advanced integrated offline switcher belonging to the TOPSwitch-HX family. Designed for flyback topology, this component is suitable for various power supply applications.



Key electrical specifications include a breakdown voltage of 700V and a switching frequency of 66kHz, with an option for 132kHz. It supports a maximum duty cycle of 78% and can deliver up to 25W of output power. The device operates within a wide input voltage range from 85V to 265V AC and features fault protection including current limiting, over temperature, and over voltage.



Packaged in an 8-DIP (0.300", 7.62mm) with 7 leads, the TOP253PN is designed for through-hole mounting. Its operating temperature range is -40°C to 150°C (TJ). The integrated switch simplifies design and reduces component count.



This device offers features like multi-mode operation for efficiency, programmable output overvoltage protection, and improved auto-restart for fault conditions. It is suitable for applications requiring reliable and efficient power conversion.

TOP253PN Quick Information

Product Type: Integrated Offline Switcher
Series: TOPSwitch-HX
Canonical Name: Power Integrations TOP253PN Integrated Off-Line Switcher
Subcategory: AC DC Converters

TOP253PN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TOP253PN Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

TOP253PN Features

  • 700V breakdown voltage for robust operation.
  • 66kHz switching frequency reduces component size.
  • 25W maximum output power capability.
  • Through-hole mounting in 8-DIP package.
  • Wide -40°C to 150°C operating temperature.

TOP253PN Applications

  • Ideal for offline power supplies.
  • Suitable for flyback converter designs.
  • Used in adapter and monitor applications.
  • Enables efficient power conversion.

TOP253PN FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the TOP253PN?

The TOP253PN operates from 85V to 265V AC input.

What package does the TOP253PN come in?

The TOP253PN is available in an 8-DIP (0.300", 7.62mm) package with 7 leads, also known as 8-PDIP-C.

What is the operating temperature range?

The operating junction temperature range is -40°C to 150°C.

What is the switching frequency of the TOP253PN?

The switching frequency is specified as 66kHz and 132kHz from the datasheet.

What is the output power rating?

The maximum output power is 25W.

What fault protections are included?

The device provides current limiting, over-temperature, and over-voltage protection.

What topology does the TOP253PN use?

The TOP253PN uses a flyback topology with isolated output.
