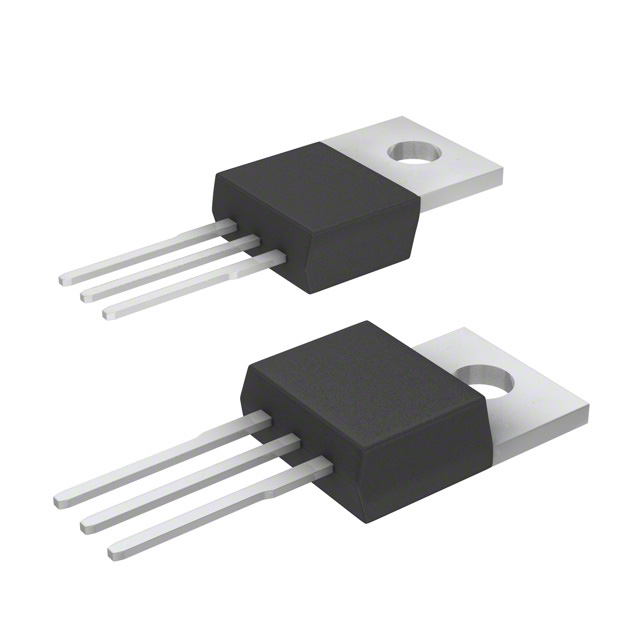

TOP222YN The Power Integrations TOP222YN is an offline switch IC designed for AC/DC conversion. It offers a voltage rating of 700V and a power output of 25W.
Mfr Part #:

TOP222YN

Available from 2 distributors
Mfr Name: Power Integrations
Power Integrations
The Power Integrations TOP222YN is an offline switch IC designed for AC/DC conversion. It offers a voltage rating of 700V and a power output of 25W.
✓ Total Stock: 12,000 pcs
$ Price Range: $0.75

TOP222YN Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,000 pcs
On Request
6000 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
6,000 pcs
On Request
6000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TOP222YN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Duty Cycle
Fault Protection
Frequency
Internal Switch(s)
Mounting Type
Operating Temperature
Output Isolation
Power (Watts)
Supplier Device Package
Topology
Voltage
View Similar Products (0)

TOP222YN Description

Short technical summary and product information.

The Power Integrations TOP222YN is a versatile AC/DC converter and offline switch IC. It is designed for applications requiring efficient power conversion, offering a voltage rating of 700V and a maximum power dissipation of 25W. The device operates at a switching frequency of up to 110kHz, supporting various topologies including Boost, Buck, Flyback, and Forward.



This IC integrates essential functions for a switched-mode control system, including a power MOSFET, PWM controller, and fault protection circuitry. It features built-in auto-restart and current limiting, along with latching thermal shutdown for system-level protection. The TO-220-3 package with through-hole mounting is suitable for direct board integration.



The TOPSwitch-II family, to which the TOP222YN belongs, extends power ranges for both universal and single voltage inputs, making it suitable for applications like TVs, monitors, and audio amplifiers. Its design enhancements reduce sensitivity to board layout and line transients, simplifying the design process and reducing time to market.

TOP222YN Quick Information

Product Type: Offline Switch IC
Series: TOPSwitch-II
Canonical Name: TOP222YN Offline Switch IC
Subcategory: Offline Switches

TOP222YN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

TOP222YN Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

TOP222YN Features

  • 700V voltage rating for AC/DC conversion.
  • 25W maximum power dissipation.
  • Up to 110kHz switching frequency.
  • Supports Boost, Buck, Flyback, Forward topologies.
  • TO-220-3 package with through-hole mounting.

TOP222YN Applications

  • Ideal for low power applications.
  • Suitable for TV and monitor power supplies.
  • Used in audio amplifier circuits.
  • Enables cost-effective switcher solutions.
  • Simplifies power supply designs.

TOP222YN FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage rating of the TOP222YN?

The internal switch is rated for 700V.

What package does the TOP222YN come in?

It is offered in a TO-220-3 through-hole package.

What is the operating temperature range?

The junction temperature range is -40°C to 150°C.

What is the maximum duty cycle of the TOP222YN?

The maximum duty cycle is 70%.

What protection features are included?

Current limiting and over-temperature protection are provided.

Is the output isolated?

Yes, the TOP222YN supports isolated output.

What topologies can the TOP222YN support?

It supports boost, buck, flyback, and forward topologies.
