| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

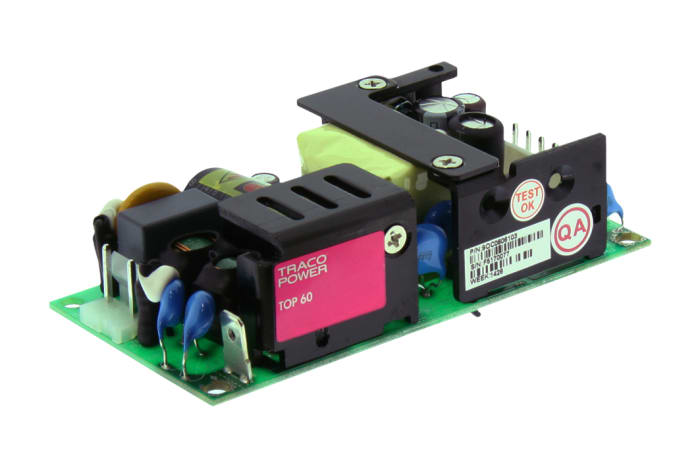

The Traco Power TOP 60317 is an open frame AC/DC power supply designed for industrial and IT applications. It features a universal input voltage range of 90V ac to 264V ac and delivers a total power of 38W. This model offers three distinct output voltages: 5V at 6A, 3.3V at 500mA, and 12V at 500mA. The power supply has a chassis mount type and operates within a temperature range of -10°C to 70°C.
Key specifications include an efficiency of 75% and 4000V ac input/output isolation. It meets various standards and approvals such as EN 60950-1, IEC 60950-1, and FCC Part 15 Class B. The compact dimensions of 101.6mm x 50.8mm x 30mm make it suitable for space-constrained designs. Protection features include short circuit and over voltage protection, with a Class II protection rating.
90VAC to 264VAC.
-10°C to 70°C.
Chassis mount.
Yes, with 4000VAC isolation.
Short circuit and over voltage protection.
75%.
38W.
