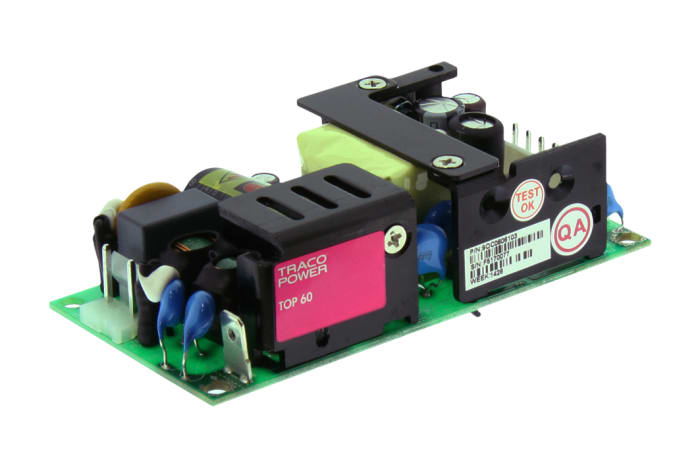

The Traco Power TOP 60254 is an open-frame AC/DC converter designed for industrial and IT applications. It delivers a power output of 66W with a 24V DC output voltage and supports a wide input voltage range of 90-264V AC and 110-370V DC.
This converter boasts a high efficiency of 88%, contributing to lower energy consumption. It operates within an ambient temperature range of -10°C to 70°C, with derating. The unit features a chassis mount type for straightforward system integration and has compact dimensions of 101.6mm x 50.8mm x 30.0mm.
Key specifications include a 1.5A output current and dual outputs. It is designed for dependable performance in various settings, including automation equipment, power-sensitive electronic devices, telecommunications systems, and control systems.
The TOP 60254 provides dual outputs of 5V dc and 24V dc.
The TOP 60254 is rated for 66W output power.
The AC input range is 90 to 264V ac, and the DC input range is 110 to 370V dc.
The operating temperature range is -10°C to 70°C with derating.
The efficiency is 88%.
The mounting type is chassis mount.
It complies with IEC/EN 60950-1, EN 55022 Class B, and FCC Part 15 Class B among others.
