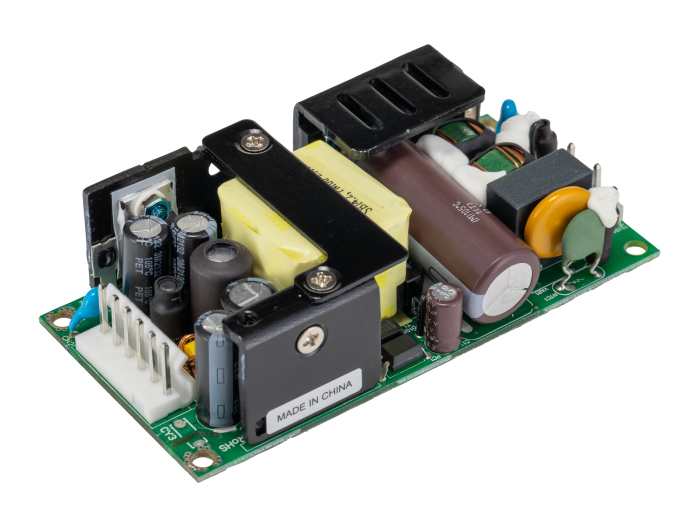

This Traco Power TOP 60252 switching power supply is designed to convert AC input voltages between 90V ac and 264V ac to a stable dual DC output. It provides a 12V dc output at 6A, along with a 5V dc output, delivering a total power of 55W. The unit boasts a high efficiency of up to 88%, minimizing energy waste and heat generation.
With a chassis mount type, this open-frame power supply is suitable for integration into various systems. Its operating temperature range is -10°C to 70°C, with derating. The power supply includes features such as universal input, short circuit protection, overvoltage protection, and an EMI filter to ensure reliable and safe operation.
Applications for this power supply include IT equipment, industrial automation, military technology, and electronics manufacturing. Its robust design and features make it a versatile solution for power conversion needs in demanding environments. The Mean Time Between Failures (MTBF) is rated up to 400,000 hours, indicating high dependability.
90-264V AC.
Two outputs: 5V DC and 12V DC, each rated at 6A.
-10°C to 70°C.
Typical efficiency is 88%.
400,000 hours.
Short circuit protection and overvoltage protection.
Chassis mount, open frame. Dimensions: 101.6mm x 50.8mm x 30.0mm.
