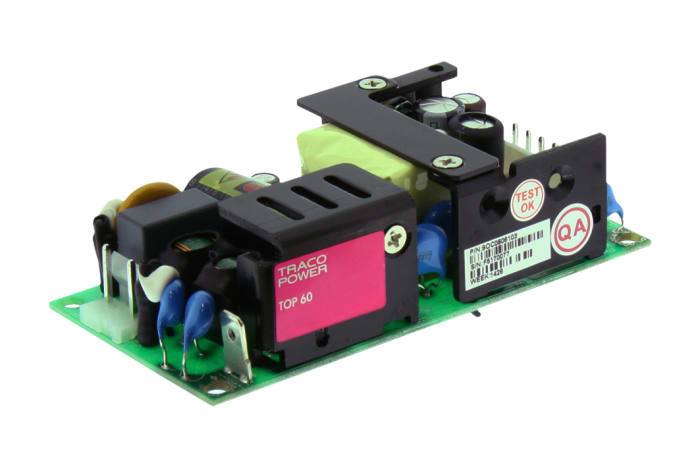

The Traco Power TOP 60115 is an open frame switching power supply designed for industrial and IT applications. It delivers a stable 15V dc output with a maximum current of 4.3A, providing a total power of 64W. The unit accepts a wide universal input voltage range from 90V ac to 264V ac, ensuring compatibility in various regions.
With a high efficiency of 88%, this power supply operates effectively within a temperature range of -10°C to 70°C, with derating applied above 50°C. It features a chassis mount type and compact dimensions of 101.6mm x 50.8mm x 30.0mm, making it suitable for space-constrained designs. The TOP 60115 offers 4kV isolation and complies with numerous safety and EMC standards, including IEC/EN 60950-1 and EN 55022 Class B.
Key specifications include a single output, universal input capability, and a weight of 205g. The series is known for its small footprint and suitability for applications requiring reliable power conversion.
The output voltage is 15V dc.
The maximum output current is 4.3A.
The power rating is 64W.
The input voltage range is 90V ac to 264V ac.
The operating temperature range is -10°C to 70°C (With Derating).
It is a chassis mount type.
The dimensions are 101.6mm x 50.8mm x 30.0mm.
