| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

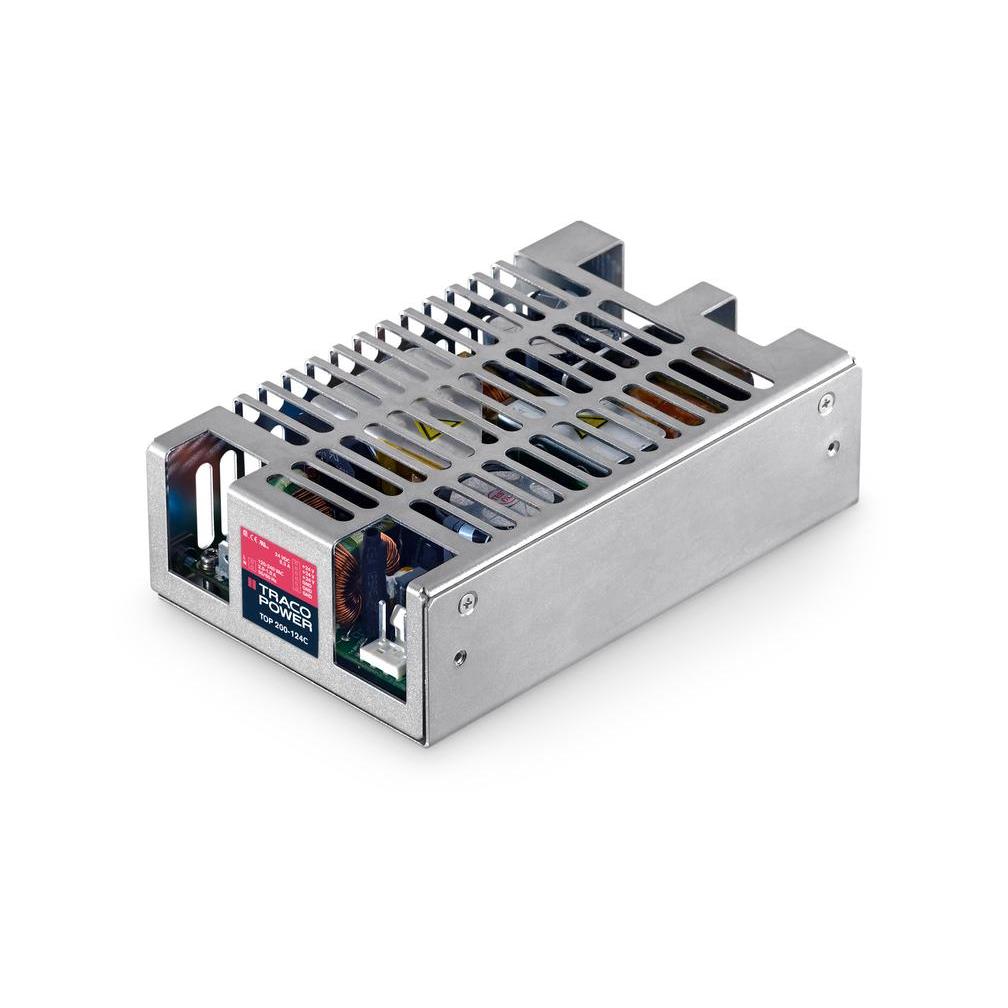

The Traco Power TOP 200-124C is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a single 24V output with a current rating of 8.3A, delivering a total power of 199W. The converter accepts a universal input voltage range of 85 to 264 VAC.
Key features include adjustable output, remote on/off functionality, and high efficiency of 93%. The unit is designed for chassis mounting and has dimensions of 127.0mm x 76.2mm x 34.0mm. It offers an isolation voltage of 3 kV and operates within a temperature range of -25°C to 70°C with derating.
This AC/DC converter is approved by multiple agencies including CB, CE, cCSAus, GS, and SIQ, ensuring compliance with various international standards. Its robust design and features make it suitable for a wide range of commercial electronic equipment.
85 to 264 VAC.
-25°C to 70°C with derating.
Enclosed, chassis mount.
24V at 8.3A.
93% typical.
127.0mm x 76.2mm x 34.0mm.
CB, CE, cCSAus, GS, SIQ.
