| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |

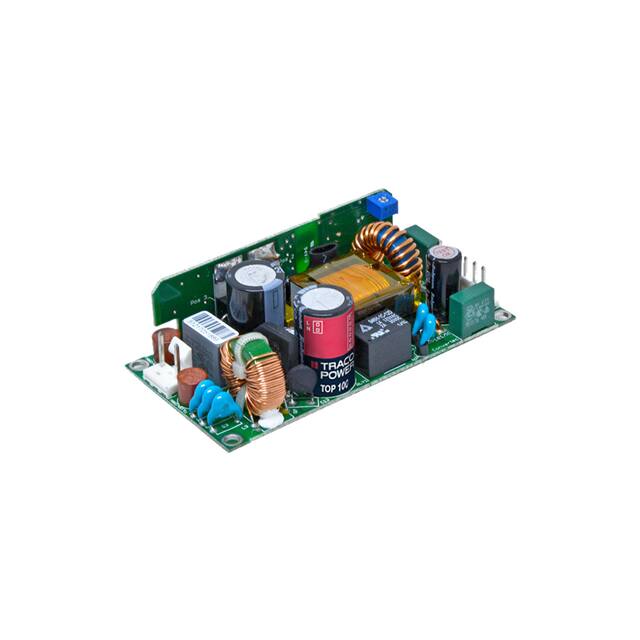

The Traco Power TOP 100-148C is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a single 48V output with a current rating of 2.1A, delivering a total power of 101W.
This converter operates with a universal input voltage range of 90-132 VAC and 187-264 VAC, offering flexibility in power sources. It boasts a high efficiency of 92% and features adjustable output and universal input capabilities. The isolation voltage is rated at 3 kV.
Designed for chassis mounting, the TOP 100-148C has dimensions of 144.0mm x 63.0mm x 31.0mm. It operates within a temperature range of -25°C to 70°C with derating. The unit is compliant with RoHS3 standards and has an MSL rating of 1 Unlimited.
The output voltage is 48V and the output current is 2.1 A.
The input voltage range is 90-132 VAC and 187-264 VAC.
The operating temperature range is -25°C to 70°C with derating.
The efficiency is 92%.
The isolation voltage is 3 kV.
The mounting type is chassis mount.
It is approved by CB, CE, cCSAus, cURus, and SIQ.
