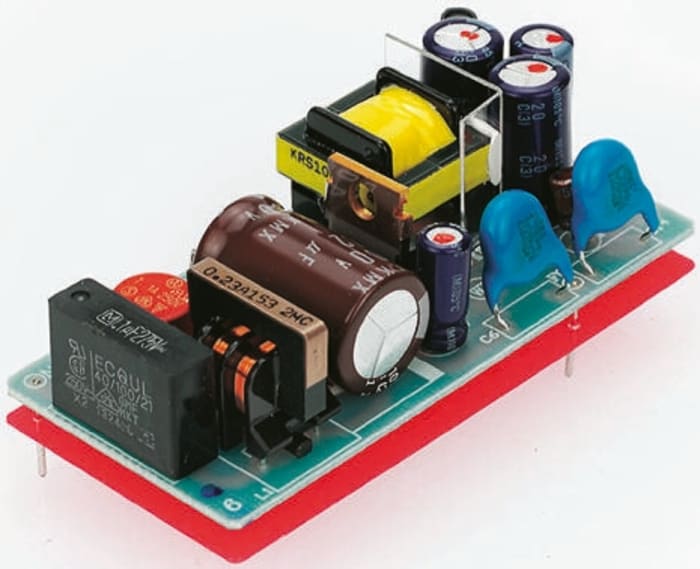

TOM 25105 The Traco Power TOM 25105 is an open frame AC/DC converter delivering 5V at 5A for a 25W output. It accepts a universal 85-264V ac input.
Mfr Part #:

TOM 25105

Mfr Name: Traco Power
Traco Power
The Traco Power TOM 25105 is an open frame AC/DC converter delivering 5V at 5A for a 25W output. It accepts a universal 85-264V ac input.
Stock on Request

TOM 25105 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Output Current
Output Voltage
Power (Watts)
Type
Voltage
Weight
Width
View Similar Products (0)

TOM 25105 Description

Short technical summary and product information.

The Traco Power TOM 25105 is an embedded switch-mode power supply (SMPS) designed for AC/DC conversion. This open frame unit provides a single 5V dc output with a maximum current of 5A, delivering a total power rating of 25W.



It features a wide input voltage range of 85 to 264V ac, making it suitable for global applications. The converter operates with an efficiency of 75% and is designed for PCB mounting.



With dimensions of 85mm x 41mm x 29.5mm, it is compact for integration into various systems. The operating temperature range is -10°C to +70°C. Approvals include CE and cURus, indicating compliance with relevant safety standards for ITE (Commercial) applications.

TOM 25105 Quick Information

Product Type: AC/DC Converter
Canonical Name: Traco Power TOM 25105 Open Frame AC/DC Converter
Subcategory: Switching Power Supplies

TOM 25105 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TOM 25105 Features

  • Delivers 5V dc at 5A for 25W output.
  • Universal 85-264V ac input range.
  • Open frame design for PCB mounting.
  • Operates efficiently at 75%.
  • Wide temperature range of -10°C to +70°C.

TOM 25105 Applications

  • Powers commercial IT equipment requiring 5V DC.
  • Suitable for industrial control and automation systems.
  • Used in test and measurement instrumentation.
  • Ideal for embedded applications with universal input.

TOM 25105 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the TOM 25105?

5V DC.

What is the input voltage range?

85 to 264VAC.

What is the power rating?

25W.

What is the operating temperature range?

-10°C to +70°C.

What package type is the TOM 25105?

Open frame, 5-DIP module, through-hole mounting.

What safety approvals does it have?

CE and cURus.

What is the efficiency?

75%.
