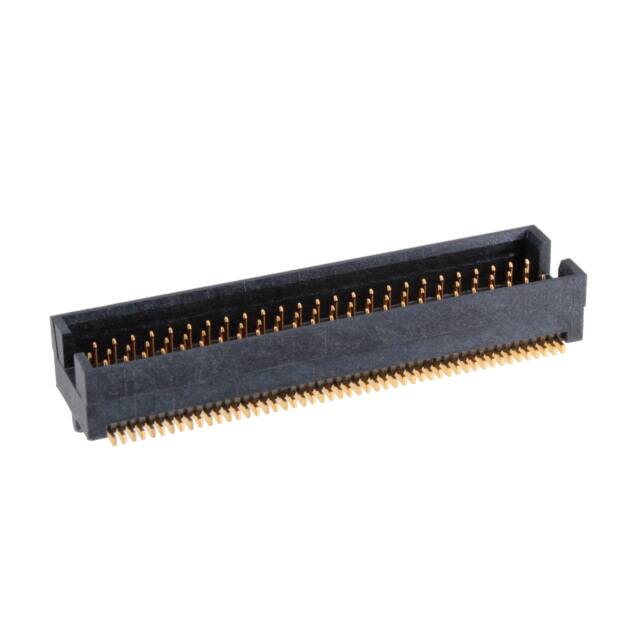

The TOLC-125-02-F-Q-A is a 100-position, 4-row rectangular header manufactured by Samtec Inc. It features a 1.27mm pitch and row spacing, making it suitable for high-density board-to-board connections. The connector is shrouded with a 4-wall design and uses a push-pull fastening type for secure mating.
This header employs male square pins made of phosphor bronze with a gold finish of 3.00µin (0.076µm). The insulator is molded from black liquid crystal polymer (LCP) with a flame rating of UL94 V-0. It includes a board guide feature for alignment during assembly. The contact length is 2.54mm, and the insulation height is 5.60mm.
Electrical specifications include a current rating of 2.4A per contact and an operating temperature range of -55°C to 125°C. The connector is designed for surface mount soldering termination. All 100 positions are loaded.
This component is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). It is intended for use in board-to-board applications where high pin count and fine pitch are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.54 | $11.54 |
| 10+ | $10.67 | $10.67 |
| 25+ | $10.64 | $10.64 |
| 48+ | $10.56 | $10.56 |
| 112+ | $9.72 | $9.72 |
| 256+ | $9.71 | $9.71 |
| 512+ | $9.54 | $9.54 |
| 1,008+ | $9.29 | $9.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
100 positions.
1.27mm (0.050").
2.4A per contact.
Surface Mount.
-55°C to 125°C.
Gold, 3.00µin (0.076µm) thickness.
Liquid Crystal Polymer (LCP).
