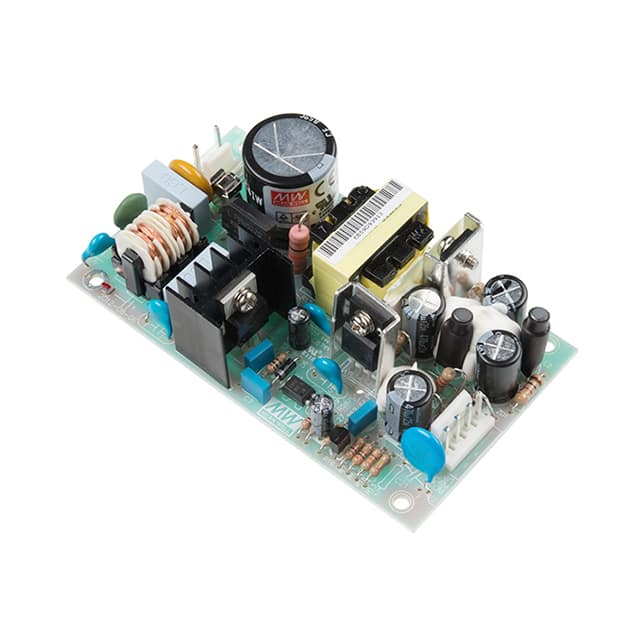

The SparkFun Electronics TOL-14101 is a 25W dual output AC/DC power supply designed for ITE (Commercial) applications. It provides outputs of +15V and -15V, each capable of delivering up to 0.8A. The converter operates within a wide input voltage range of 85-264VAC and boasts a typical efficiency of 75%.
This open frame power supply is designed for chassis mounting, making it suitable for integration into various equipment. Key electrical specifications include line regulation of ±2.0% for the +15V output and ±6.0% for the -15V output, with load regulation at ±0.5% and ±3.0% respectively. It also features overload protection that activates above 105% of rated output power and over-voltage protection.
Environmental specifications include a working temperature range of -10°C to 60°C and a working humidity range of 20% to 90% RH non-condensing. The unit meets safety standards including UL60950-1 and TUV EN60950-1, and complies with EMC standards EN55022 Class B and EN61000-4-2,3,4,5.
Dimensions are 107.0mm x 61.0mm x 28.0mm. The MTBF is rated at a minimum of 507.9Khrs at 25°C.
85 to 264VAC at 47 to 63Hz.
+15V at 1.2A and -15V at 0.8A.
Open frame, chassis mount.
-10°C to +60°C (with derating).
Yes, it includes overload protection (above 105% rated power) and overvoltage protection (shutdown, re-power to recover).
107.0mm x 61.0mm x 28.0mm (4.21" x 2.40" x 1.10").
Safety: UL60950-1, TUV EN60950-1. EMC: EN55022 Class B, EN61000-3-2,-3, and EN61000-4-2,3,4,5 (light industry, criteria A).
