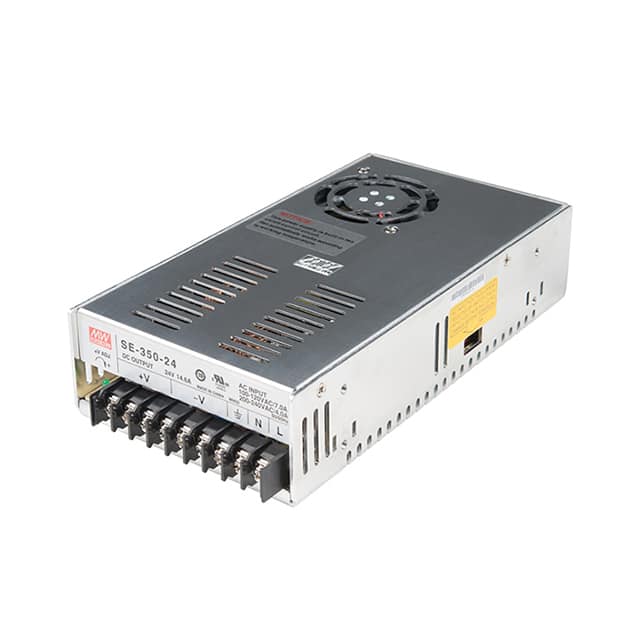

The SparkFun Electronics TOL-14100 is a 350W enclosed AC/DC power supply designed for ITE (Commercial) applications. It offers a wide input voltage range of 90-264VAC and can also accept DC input from 254-370VDC. The converter provides a single output with an adjustable voltage range and features adjustable output and DC input capability.
Key electrical specifications include a rated current of 7A at 115VAC and 4A at 230VAC, with an efficiency of up to 87%. It operates within a frequency range of 47-63Hz. The unit is designed for chassis mounting and has dimensions of 205.0mm x 115.0mm x 50.0mm.
Safety features include a withstand voltage of 3kVAC (I/P-O/P), 2kVAC (I/P-FG), and 0.5kVAC (O/P-FG), with an isolation resistance of 100M Ohms at 500VDC. The operating temperature range is -20°C to 60°C with derating, and it has an MTBF of 234.3K hours at 25°C.
The output voltage is adjustable and can range from 3.8V to 67.2V.
The rated current is 7A at 115VAC and 4A at 230VAC.
The input voltage range is 90-132VAC or 180-264VAC, switchable. It can also accept 254-370VDC.
The typical efficiency is 87%.
The operating temperature range is -20°C to 60°C with derating.
The minimum MTBF is 234.3K hours, calculated per MIL-HDBK-217F at 25°C.
The dimensions are 215mm x 115mm x 50mm (Length x Width x Height).
