| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Form | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Output Connector | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Region Utilized | |
| Voltage |

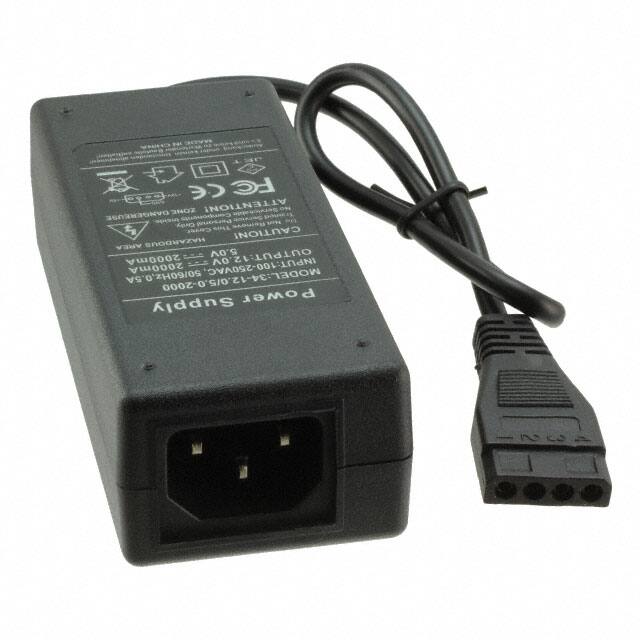

This AC/DC desktop power supply from SparkFun Electronics, model TOL-11296, is designed to provide versatile power for various projects. It outputs dual voltages of 12VDC and 5VDC, with a combined maximum output power of 34 Watts and a maximum current of 2 Amps.
The unit features an IEC C14 input connector for AC power, requiring a standard IEC C13 cable (sold separately). The DC output is delivered through a 4-pin Molex 8981 Series connector, commonly found in computer systems, making it easy to find compatible adapters and cable assemblies.
With an input voltage range of 100 to 240VAC at 50-60Hz, this power supply is suitable for international use. It is designed for ITE (Commercial) applications and carries CCC, CE, and EK approval agency certifications. The desktop form factor is classified as Class I.
Note that only the pin next to the 5V output is grounded; the pin next to the 12V output is not connected (NC). The AC power cord is not included.
The TOL-11296 power supply outputs both 12VDC and 5VDC.
The maximum output current for the TOL-11296 is 2A.
The TOL-11296 has a total output power of 34 Watts.
The TOL-11296 uses an IEC C14 input connector.
The TOL-11296 features a 4-pin Molex 8981 Series output connector.
No, the AC power cord is not included with the TOL-11296.
The TOL-11296 accepts an input voltage range of 100 to 240 VAC.
