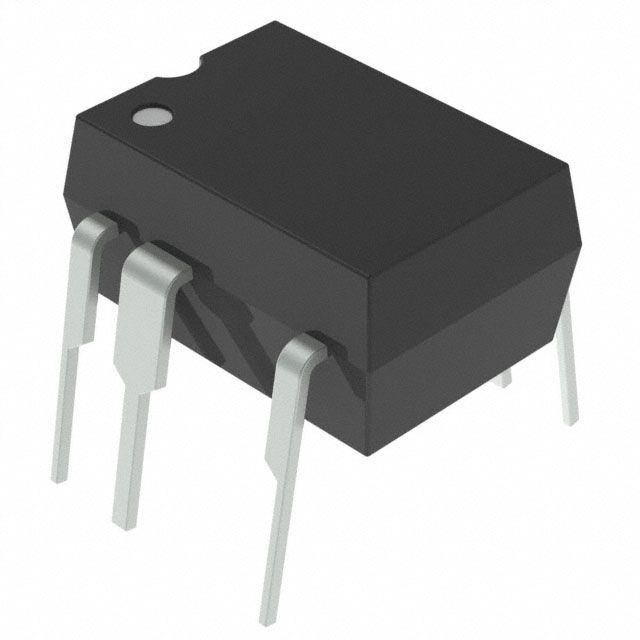

The Power Integrations TNY275PN is an integrated circuit designed for offline switching power supplies. It operates as a flyback topology controller, providing isolated power conversion.
Key electrical specifications include a maximum output power of 15W and a voltage rating of 700V. The device supports a maximum duty cycle of 65% and operates at a frequency of 132kHz. It includes comprehensive fault protection features such as current limiting, open loop, over temperature, over voltage, and short circuit protection.
This IC is packaged in an 8-pin DIP (8-PDIP-C) with through-hole mounting. It is designed for applications requiring efficient and reliable power conversion, such as chargers and adapters.
The TNY275PN is RoHS3 compliant and features a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The voltage rating is 700V.
It is available in an 8-PDIP-C (8-DIP with 7 leads, 0.300" lead spacing) through-hole package.
It operates over a junction temperature range of -40°C to 150°C.
The maximum output power is 15W in peak/open frame configuration at 230VAC.
It includes current limiting, open loop, over temperature, over voltage, and short circuit protection.
It supports flyback topology with output isolation.
The switching frequency is 132kHz.
