The Power Integrations TNY266GN-TL is an enhanced, energy-efficient, low-power off-line switcher IC. It integrates a 700V power MOSFET, oscillator, and protection circuitry onto a single monolithic device, simplifying designs and reducing component count.
Key electrical specifications include a 700V voltage rating, a 132kHz operating frequency, and a 15W power output. It features a 65% duty cycle and offers comprehensive fault protection, including current limiting, open loop, over-temperature, and short circuit protection. The device supports EN control features.
This IC is designed for applications requiring high performance at low cost, such as cell-phone chargers and PC standby power supplies. It meets stringent energy efficiency standards, with no-load consumption as low as <50 mW with a bias winding at 265 VAC input. The frequency jittering feature dramatically reduces EMI, minimizing filter component costs.

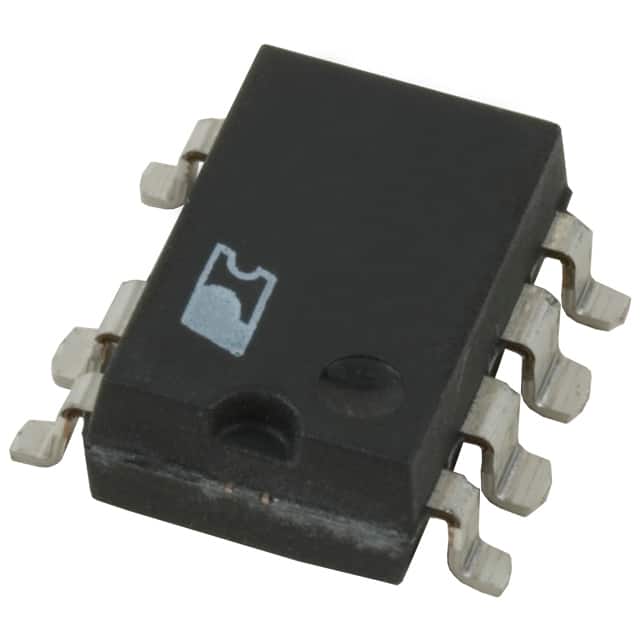

The TNY266GN-TL is housed in a Surface Mountable 8-SMD (7 Leads), Gull Wing package, making it suitable for automated manufacturing processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TNY266GN-TL has a voltage rating of 700V.
The TNY266GN-TL operates at a frequency of 132kHz.
The TNY266GN-TL has a power output of 15W.
The operating temperature range for the TNY266GN-TL is -40°C to 150°C (TJ).
The TNY266GN-TL is in an 8-SMD (7 Leads), Gull Wing package.
The TNY266GN-TL is designed for Surface Mount.
The TNY266GN-TL includes Current Limiting, Open Loop, Over Temperature, and Short Circuit fault protection.
