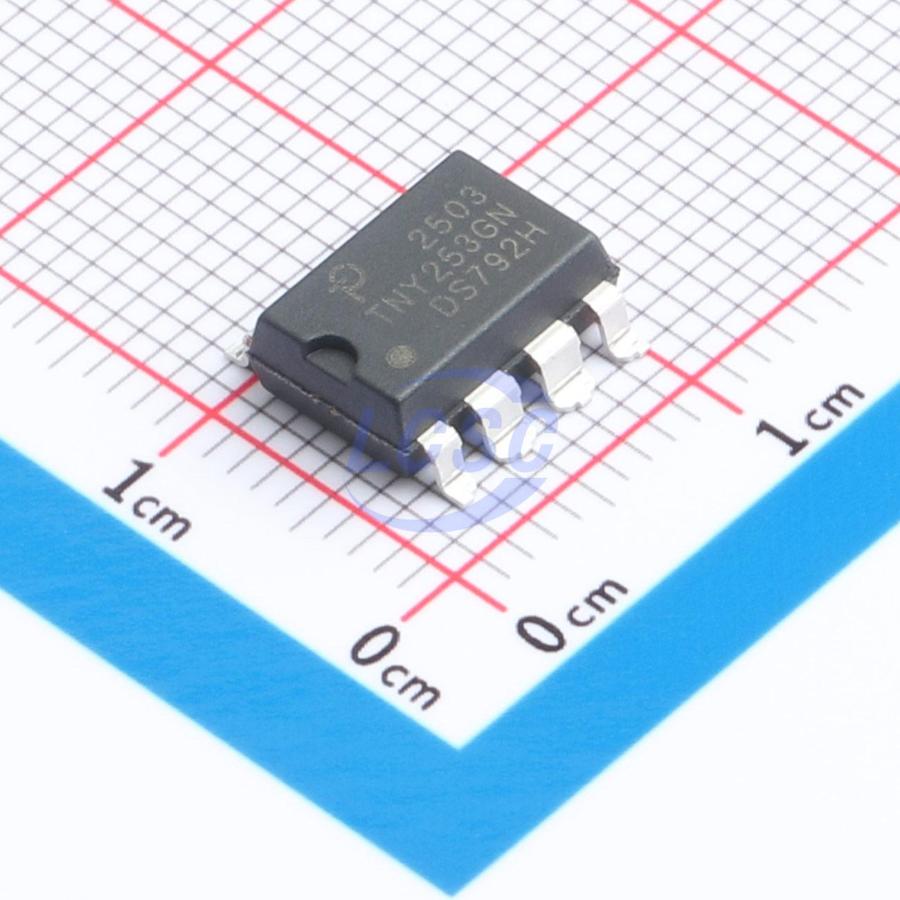

The TNY253GN-TL from Power Integrations is an integrated circuit designed for offline power supply applications. This device functions as an offline switch utilizing a flyback topology, offering an isolated output.
Key electrical characteristics include a voltage rating of 700V, a power output of 2W, and an operating frequency of 44kHz. It features a duty cycle of 68% and includes fault protection mechanisms such as current limiting and over-temperature protection. The IC has an internal switch and is controlled via an 'EN' pin.
Packaged in an 8-SMD, Gull Wing configuration, the TNY253GN-TL is designed for surface mount applications. It operates within a temperature range of -40°C to 150°C (TJ). The component is listed as RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
700V.
-40°C to 150°C (TJ).
8-SMD, Gull Wing (surface mount).
Flyback.
Current limiting and over temperature protection.
44kHz.
68%.
