| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

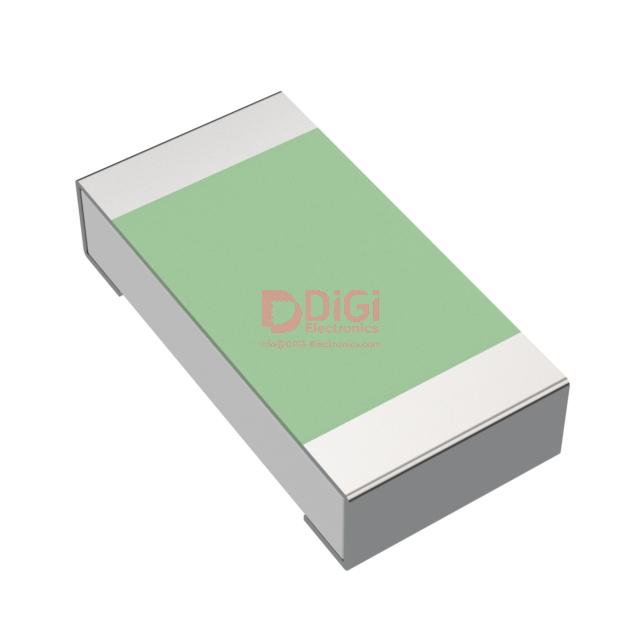

This Vishay Dale TNPW06035K23DEEA is a surface mount chip resistor designed for demanding applications. It features a resistance value of 5.23 kΩ with a precise ±0.5% tolerance, ensuring accuracy in circuit performance.
The resistor has a power rating of 0.1W (1/10W) and operates within a temperature range of -55°C to 155°C. Its temperature coefficient is ±25ppm/°C, providing stability across varying thermal conditions. The component is built with thin film technology and includes features such as anti-sulfur, automotive AEC-Q200, and moisture resistance.
Packaged in a compact 0603 (1608 Metric) size, it measures 1.55mm in length, 0.85mm in width, and 0.55mm in height. The device has 2 terminations and is suitable for surface mounting.
Compliance includes RoHS3, REACH Unaffected, and Moisture Sensitivity Level 1 (Unlimited). Its AEC-Q200 rating makes it suitable for automotive applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 5.23 kΩ.
The tolerance is ±0.5%.
The power rating is 0.1W.
The temperature coefficient is ±25ppm/°C.
The operating temperature range is -55°C to 155°C.
It is available in the 0603 (1608 Metric) package size.
Yes, it features Automotive AEC-Q200 compliance.
