| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Technology | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Voltage | |
| Width |

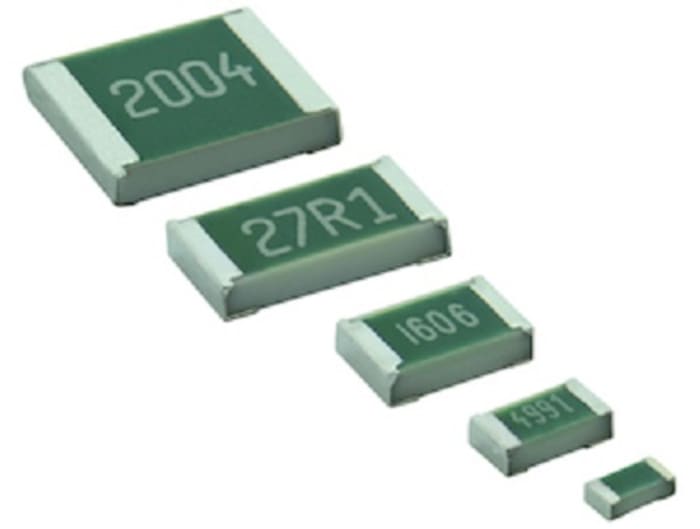

The Vishay Dale TNPW0603470RBEEA is a high-precision thin film surface mount resistor designed for demanding applications. It offers a resistance value of 470 Ohms with a tight tolerance of ±0.1%, ensuring accurate circuit performance.
With a power rating of 0.125W and a wide operating temperature range from -55°C to 155°C, this resistor is suitable for various environmental conditions. It features a compact 0603 package size, making it ideal for space-constrained PCB designs. The component is AEC-Q200 qualified, indicating its suitability for automotive applications.
Key specifications include a temperature coefficient of ±10 ppm/°C and a voltage rating of 75V. The thin film technology provides stability and reliability. The resistor is supplied in paper tape packaging, suitable for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 470 Ohms.
The tolerance is ±0.1%.
The power rating is 0.125W.
The operating temperature range is -55°C to 155°C.
The temperature coefficient is ±10 ppm/°C.
It uses the 0603 package size.
Yes, it is AEC-Q200 qualified.
