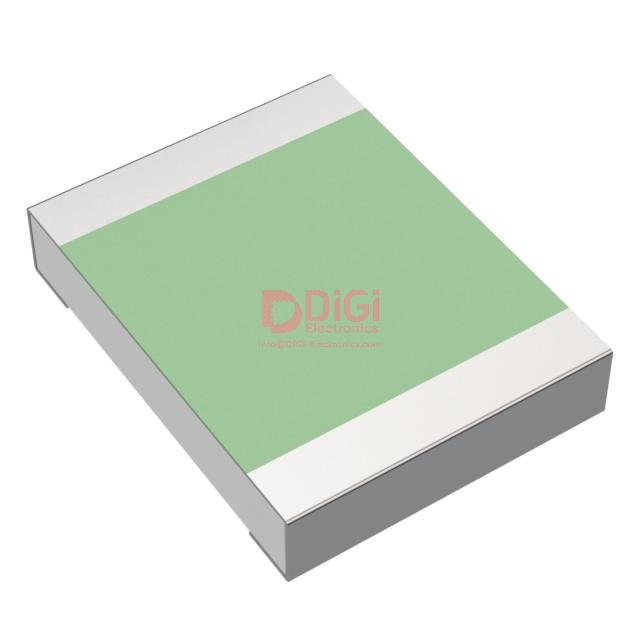

TNPW0603300RBEEA The Vishay Dale TNPW0603300RBEEA is a surface mount chip resistor with 300 Ohms resistance and a tolerance of ±0.1%. It has a power rating of 0.1W.
Mfr Part #:

TNPW0603300RBEEA

Available from 1 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale TNPW0603300RBEEA is a surface mount chip resistor with 300 Ohms resistance and a tolerance of ±0.1%. It has a power rating of 0.1W.
✓ Total Stock: 15 pcs
$ Price Range: $0.02

TNPW0603300RBEEA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TNPW0603300RBEEA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Power Rating
Ratings
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

TNPW0603300RBEEA Description

Short technical summary and product information.

This Vishay Dale TNPW0603300RBEEA is a surface mount chip resistor designed for various electronic applications. It features a resistance value of 300 Ohms with a tight tolerance of ±0.1%, ensuring precise circuit performance.



The resistor has a power rating of 0.1W (1/10W) and operates within a temperature range of -55°C to 155°C. Its thin film composition contributes to its stability and reliability.



Packaged in the compact 0603 (1608 Metric) size, this component is suitable for automated assembly processes. The dimensions are 1.60mm in length and 0.85mm in width, with a height of 0.55mm.



Key features include its AEC-Q200 rating, making it suitable for automotive applications, along with anti-sulfur and moisture-resistant properties. It is also compliant with RoHS3 standards.

TNPW0603300RBEEA Quick Information

Product Type: Chip Resistor - Surface Mount
Series: TNPW
Canonical Name: Vishay Dale TNPW0603300RBEEA Chip Resistor - Surface Mount
Subcategory: Surface Mount

TNPW0603300RBEEA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TNPW0603300RBEEA Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

TNPW0603300RBEEA Features

  • 300 Ohm resistance with ±0.1% tolerance.
  • 0.1W power rating at 0603 package size.
  • Wide operating temperature range of -55°C to 155°C.
  • AEC-Q200 qualified for automotive use.
  • RoHS3 compliant for environmental considerations.

TNPW0603300RBEEA Applications

  • Suitable for automotive applications.
  • Ideal for high-density PCB designs.
  • Used in circuits requiring precise resistance.
  • General purpose surface mount applications.

TNPW0603300RBEEA FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resistance value of the TNPW0603300RBEEA?

The resistance value is 300 Ohms.

What is the tolerance of the TNPW0603300RBEEA resistor?

The tolerance is ±0.1%.

What is the power rating for the TNPW0603300RBEEA?

The power rating is 0.1W, or 1/10W.

What is the operating temperature range for this chip resistor?

The operating temperature range is -55°C to 155°C.

What package size is the TNPW0603300RBEEA available in?

It is available in the 0603 (1608 Metric) package size.
