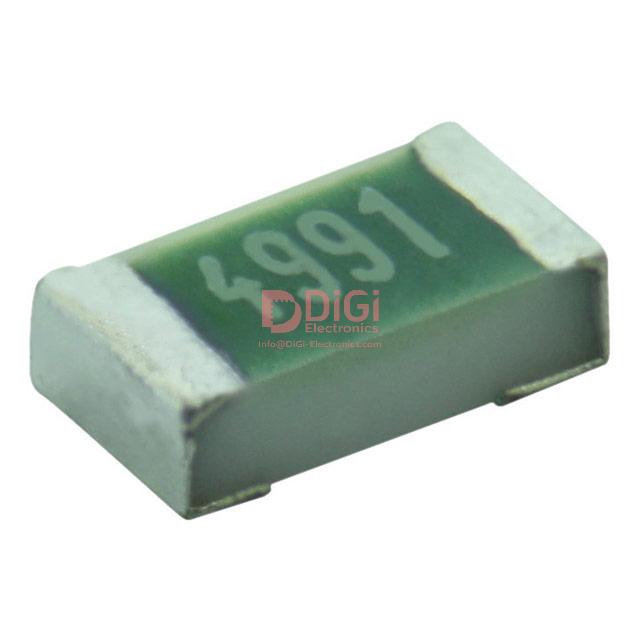

TNPW06032K71BEEA The Vishay Dale TNPW06032K71BEEA is a thin film chip resistor with 2.71 kOhms resistance and a tolerance of ±0.1%. It is rated for 0.21W and operates within a temperature range of -55°C to 175°C.
Mfr Part #:

TNPW06032K71BEEA

Available from 1 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale TNPW06032K71BEEA is a thin film chip resistor with 2.71 kOhms resistance and a tolerance of ±0.1%. It is rated for 0.21W and operates within a temperature range of -55°C to 175°C.
✓ Total Stock: 5,000 pcs
$ Price Range: $0.02

TNPW06032K71BEEA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TNPW06032K71BEEA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Mounting Type
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

TNPW06032K71BEEA Description

Short technical summary and product information.

The Vishay Dale TNPW06032K71BEEA is a surface-mount thin film chip resistor designed for demanding applications. It offers a precise resistance value of 2.71 kOhms with a tight tolerance of ±0.1%, ensuring accuracy in circuit performance.



This resistor is rated for 0.21W of power dissipation and operates across a wide temperature range from -55°C to 175°C. Its construction features anti-sulfur properties and moisture resistance, making it suitable for harsh environmental conditions. The component is also automotive AEC-Q200 qualified, indicating its reliability for in-vehicle systems.



Packaged in a compact 0603 (1608 Metric) case, the TNPW06032K71BEEA is designed for surface mounting. Its dimensions are 1.55mm in length and 0.85mm in width, with a height of 0.55mm. The component has two terminations, facilitating standard surface-mount assembly processes.

TNPW06032K71BEEA Quick Information

Product Type: Chip Resistor
Series: TNPW e3
Canonical Name: Vishay Dale TNPW06032K71BEEA Thin Film Chip Resistor
Subcategory: Surface Mount

TNPW06032K71BEEA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TNPW06032K71BEEA Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

TNPW06032K71BEEA Features

  • Thin film construction for precise resistance.
  • 2.71 kOhm resistance with ±0.1% tolerance.
  • 0.21W power rating suitable for general use.
  • Automotive AEC-Q200 qualified for reliability.
  • Anti-sulfur and moisture resistant features.

TNPW06032K71BEEA Applications

  • Ideal for automotive electronic systems.
  • Suitable for harsh environmental conditions.
  • Used in precision signal processing circuits.
  • Surface mount assembly compatible.

TNPW06032K71BEEA FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the TNPW06032K71BEEA?

The resistance value is 2.71 kOhms.

What is the tolerance of the TNPW06032K71BEEA resistor?

The tolerance is ±0.1%.

What is the power rating of the TNPW06032K71BEEA?

The power rating is 0.21W.

What is the operating temperature range for the TNPW06032K71BEEA?

The operating temperature range is -55°C to 175°C.

What package type is the TNPW06032K71BEEA available in?

It is available in the 0603 (1608 Metric) package.

Does the TNPW06032K71BEEA meet automotive standards?

Yes, it is rated AEC-Q200.
