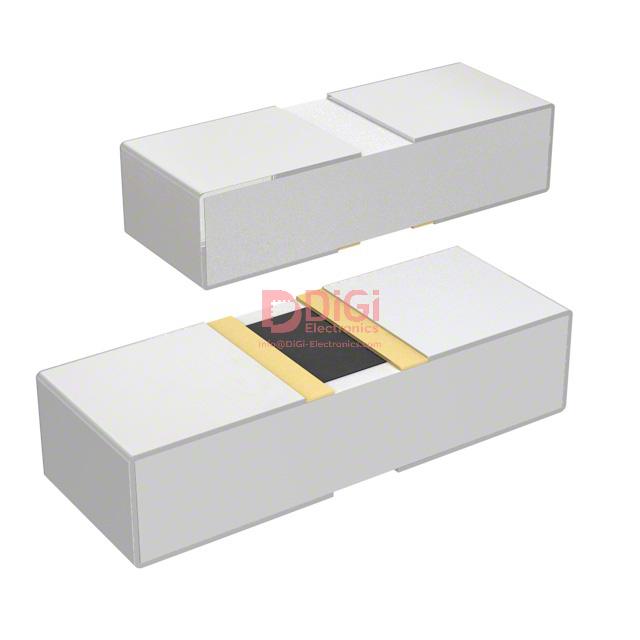

TNPW060328K7DEEA The Vishay Dale TNPW060328K7DEEA is a surface mount chip resistor with a resistance of 28.7 kOhms and a tolerance of ±0.5%. It has a power rating of 0.1W.
Mfr Part #:

TNPW060328K7DEEA

Available from 1 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale TNPW060328K7DEEA is a surface mount chip resistor with a resistance of 28.7 kOhms and a tolerance of ±0.5%. It has a power rating of 0.1W.
✓ Total Stock: 2,500 pcs
$ Price Range: $0.02

TNPW060328K7DEEA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TNPW060328K7DEEA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Storage Temperature
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

TNPW060328K7DEEA Description

Short technical summary and product information.

The Vishay Dale TNPW060328K7DEEA is a surface mount chip resistor designed for various electronic applications. It features a resistance value of 28.7 kOhms with a tight tolerance of ±0.5%, ensuring precise circuit performance.



This component has a power rating of 0.1W (1/10W) and operates within a temperature range of -55°C to 155°C, with a temperature coefficient of ±25ppm/°C. The resistor is constructed using thin film technology.



Packaged in a compact 0603 (1608 Metric) case, the TNPW060328K7DEEA is suitable for automated assembly processes. Its dimensions are 1.55mm in length and 0.85mm in width, with a height of 0.55mm. The component is also rated for automotive applications (AEC-Q200) and offers features such as anti-sulfur and moisture resistance.

TNPW060328K7DEEA Quick Information

Product Type: Chip Resistor - Surface Mount
Series: TNPW
Canonical Name: Vishay Dale TNPW060328K7DEEA Chip Resistor - Surface Mount
Subcategory: Surface Mount

TNPW060328K7DEEA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TNPW060328K7DEEA Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

TNPW060328K7DEEA Features

  • Surface mount chip resistor with 28.7 kOhms resistance.
  • Tight tolerance of ±0.5% for precise applications.
  • Rated for 0.1W power at 0.5% tolerance.
  • Operates from -55°C to 155°C.
  • Automotive AEC-Q200 qualified.

TNPW060328K7DEEA Applications

  • Suitable for automotive applications.
  • Ideal for circuits requiring precise resistance.
  • Used in general electronic designs.
  • Surface mount assembly compatible.

TNPW060328K7DEEA FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the TNPW060328K7DEEA?

The resistance value is 28.7 kOhms.

What is the tolerance of the TNPW060328K7DEEA resistor?

The tolerance is ±0.5%.

What is the power rating of the TNPW060328K7DEEA?

The power rating is 0.1W, or 1/10W.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to 155°C.

What package size is the TNPW060328K7DEEA resistor?

The package size is 0603 (1608 Metric).

What are the key features of the TNPW060328K7DEEA?

Key features include Anti-Sulfur, Automotive AEC-Q200, and Moisture Resistant.
