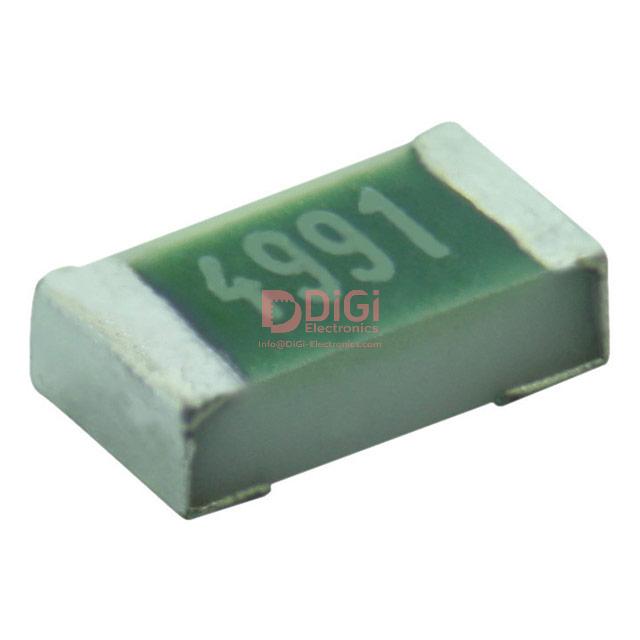

TNPW060316K0BEEA The Vishay Dale TNPW060316K0BEEA is a surface mount chip resistor with 16 kOhms resistance and a ±0.1% tolerance. It has a power rating of 0.21W.
Mfr Part #:

TNPW060316K0BEEA

Available from 2 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale TNPW060316K0BEEA is a surface mount chip resistor with 16 kOhms resistance and a ±0.1% tolerance. It has a power rating of 0.21W.
✓ Total Stock: 3,704 pcs
$ Price Range: $0.02

TNPW060316K0BEEA Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
3,615 pcs
On Request
3615 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
89 pcs
On Request
89 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TNPW060316K0BEEA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

TNPW060316K0BEEA Description

Short technical summary and product information.

This Vishay Dale TNPW060316K0BEEA is a surface mount chip resistor designed for various electronic applications. It features a resistance value of 16 kOhms with a tight tolerance of ±0.1%, ensuring precise circuit performance.



The resistor has a power rating of 0.21W and is constructed with thin film technology. It operates within a temperature range of -55°C to 175°C, with a temperature coefficient of ±25ppm/°C.



The component comes in an 0603 (1608 Metric) package, measuring 1.60mm in length and 0.85mm in width. Its height is 0.55mm. The device is rated AEC-Q200 and features anti-sulfur, automotive, and moisture-resistant properties, making it suitable for demanding environments.



Key specifications include a 2-termination design and it is supplied on tape and reel.

TNPW060316K0BEEA Quick Information

Product Type: Chip Resistor - Surface Mount
Series: TNPW e3
Canonical Name: Vishay Dale TNPW060316K0BEEA Chip Resistor - Surface Mount 16 kOhms ±0.1% 0.21W
Subcategory: Surface Mount

TNPW060316K0BEEA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TNPW060316K0BEEA Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

TNPW060316K0BEEA Features

  • 16 kOhms resistance with ±0.1% tolerance.
  • 0.21W power rating in 0603 package.
  • Thin film composition for stability.
  • Wide operating temperature range.
  • AEC-Q200 qualified for automotive use.

TNPW060316K0BEEA Applications

  • Suitable for automotive applications.
  • Ideal for circuits requiring precision.
  • Used in harsh environmental conditions.
  • Surface mount assembly compatible.

TNPW060316K0BEEA FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the TNPW060316K0BEEA?

The resistance value is 16 kilo-ohms.

What is the tolerance of this resistor?

The tolerance is ±0.1%.

What is the power rating of the TNPW060316K0BEEA?

The power rating is 0.21W.

What is the operating temperature range?

It operates from -55°C to 175°C.

What package size does this resistor use?

It uses a 0603 (1608 metric) package.

Is the resistor moisture resistant?

Yes, it is moisture resistant.

Is this resistor compliant with automotive standards?

Yes, it complies with the AEC-Q200 standard.
