| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,890 pcs
|
4890 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

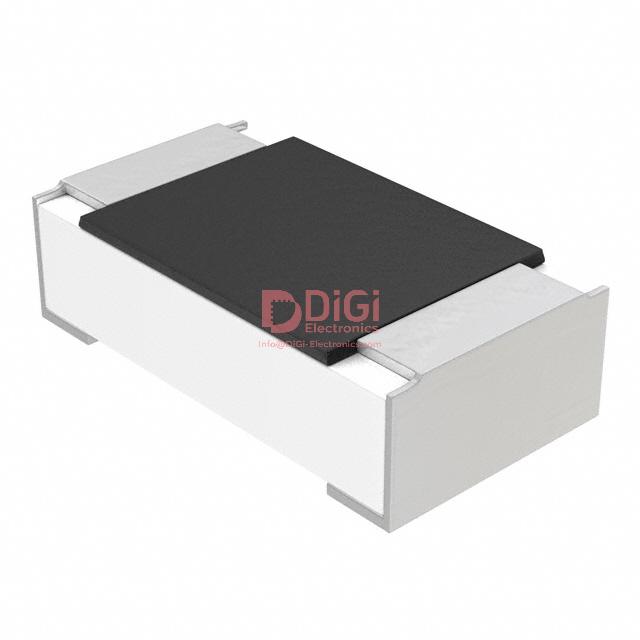

This Vishay Dale TNPW060312K0BEEN is a precision chip resistor designed for surface mount applications. It features a resistance value of 12 kOhms with a high accuracy tolerance of ±0.1% and a power rating of 0.1W (1/10W).
The resistor operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±25ppm/°C. Its construction is thin film, and it includes features such as anti-sulfur, automotive AEC-Q200 compliance, and moisture resistance.
The component is housed in a 0603 (1608 Metric) package, measuring 1.60mm in length and 0.85mm in width. It has two terminations and is supplied on tape and reel.
Key specifications include its 12 kOhm resistance, ±0.1% tolerance, and 0.1W power rating, making it suitable for applications requiring precise current control and stability.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 12 kOhms.
The tolerance is ±0.1%.
The power rating is 0.1W, or 1/10W.
The temperature coefficient is ±25ppm/°C.
The operating temperature range is -55°C to 155°C.
It is a 0603 (1608 Metric) package size.
Yes, it features Automotive AEC-Q200 compliance.
