| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

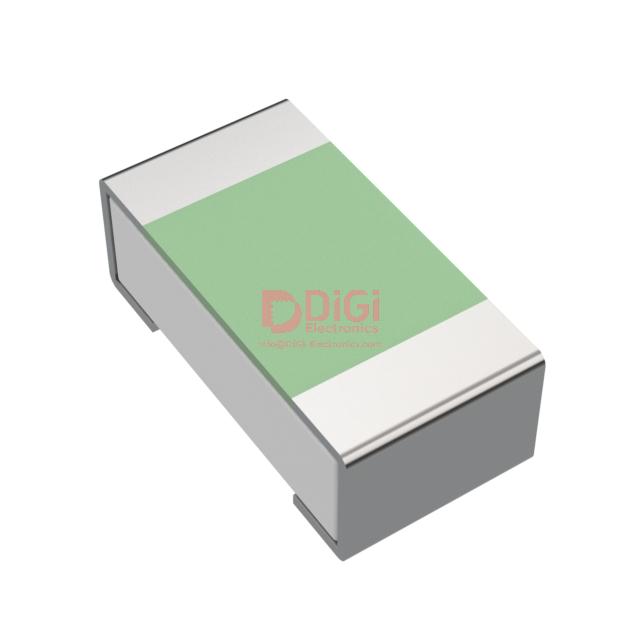

This Vishay Dale TNPW060310K5BEEA is a surface mount chip resistor designed for demanding applications. It offers a precise resistance value of 10.5 kΩ with a tight tolerance of ±0.1%, making it suitable for accurate circuit performance.
The resistor has a power rating of 0.1W (1/10W) and operates within a temperature range of -55°C to 155°C, with a temperature coefficient of ±25ppm/°C. Its thin film composition ensures stability and reliability.
Key features include its suitability for automotive applications, indicated by the AEC-Q200 rating, and resistance to sulfur, moisture, and other environmental factors. The component is housed in a compact 0603 (1608 Metric) surface mount package, facilitating high-density board designs. Its dimensions are 1.60mm in length, 0.85mm in width, and 0.55mm in height.
This part is ideal for use in various electronic systems where precision, reliability, and environmental robustness are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 10.5 kΩ.
The tolerance is ±0.1%.
The power rating is 0.1W or 1/10W.
The operating temperature range is -55°C to 155°C.
It is in a 0603 (1608 Metric) package.
Yes, it is rated AEC-Q200.
