| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

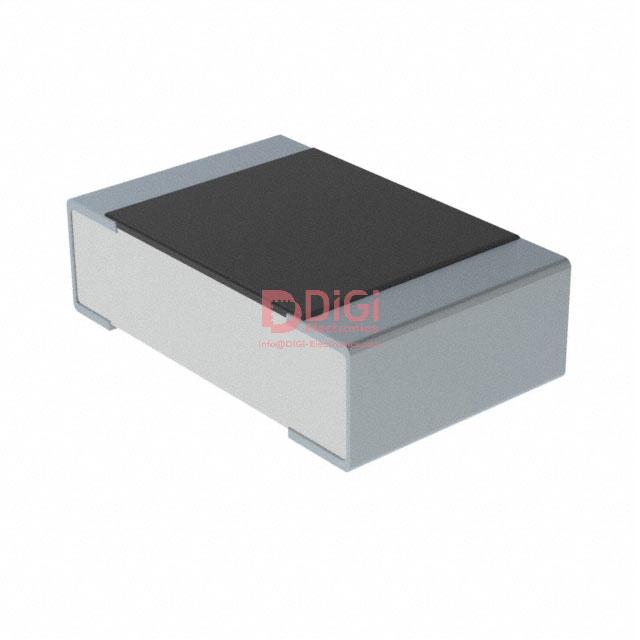

This Vishay Dale TNPW060310K1BEEA is a surface mount chip resistor designed for various electronic applications. It features a precise resistance value of 10.1 kΩ with a tight tolerance of ±0.1%, ensuring accuracy in circuit performance.
The resistor has a power rating of 0.1W (1/10W) and a temperature coefficient of ±25ppm/°C, making it suitable for applications requiring stable electrical characteristics across a wide operating temperature range of -55°C to 155°C.
Packaged in a compact 0603 (1608 Metric) case, this component is ideal for automated assembly processes. Its dimensions are 1.55mm in length and 0.85mm in width, with a height of 0.55mm. The component has 2 terminations and is constructed with a thin film composition.
Additional features include anti-sulfur properties and automotive AEC-Q200 qualification, indicating its suitability for demanding environments. The RoHS3 status is compliant, and the Moisture Sensitivity Level (MSL) is 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 10.1 kΩ.
The tolerance is ±0.1%.
The power rating is 0.1W.
The temperature coefficient is ±25ppm/°C.
The operating temperature range is -55°C to 155°C.
The resistor is in a 0603 package size.
Yes, the TNPW060310K1BEEA resistor is AEC-Q200 qualified.
