| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
54 pcs
|
54 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

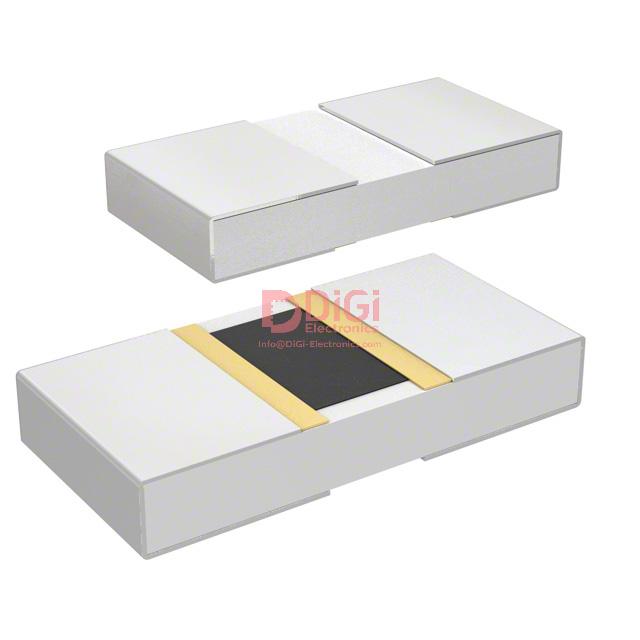

This Vishay Dale TNPW060310K0FHEA is a surface mount chip resistor designed for various electronic applications. It features a resistance value of 10 kΩ with a tight tolerance of ±1%, ensuring precise circuit performance. The resistor has a power rating of 0.1W (1/10W) and operates within a temperature range of -55°C to 155°C.
Constructed with thin film technology, this component offers a temperature coefficient of ±50ppm/°C. It is housed in a compact 0603 (1608 Metric) package, making it suitable for space-constrained designs. The resistor also boasts features such as Anti-Sulfur, Automotive AEC-Q200, and Moisture Resistance, along with AEC-Q200 ratings, indicating its suitability for demanding environments.
The dimensions of the resistor are approximately 1.55mm in length and 0.85mm in width, with a height of 0.55mm. It has 2 terminations and is supplied on tape and reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 10 kΩ.
The tolerance is ±1%.
The power rating is 0.1W, or 1/10W.
The operating temperature range is -55°C to 155°C.
The package size is 0603 (1608 Metric).
Yes, it features Automotive AEC-Q200 compliance.
