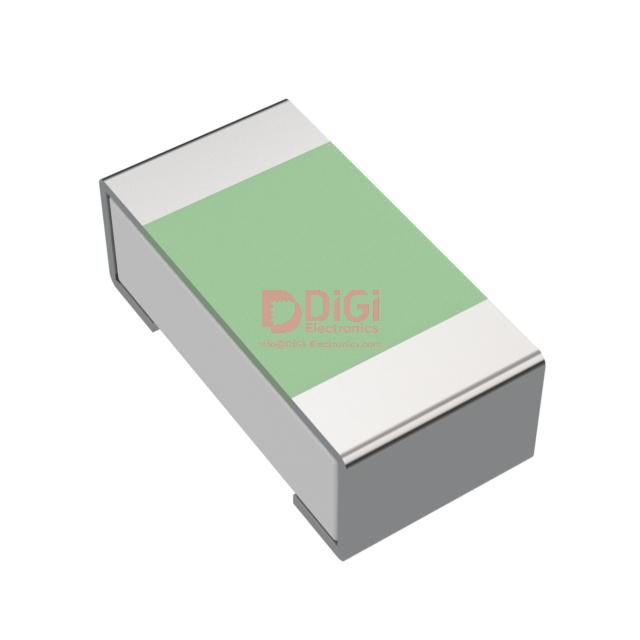

TNPW040230K9BEED The Vishay Dale TNPW040230K9BEED is a surface mount chip resistor with a resistance of 30.9 kOhms and a tolerance of ±0.1%. It has a power rating of 0.063W.
Mfr Part #:

TNPW040230K9BEED

Available from 1 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale TNPW040230K9BEED is a surface mount chip resistor with a resistance of 30.9 kOhms and a tolerance of ±0.1%. It has a power rating of 0.063W.
✓ Total Stock: 9,000 pcs
$ Price Range: $0.02

TNPW040230K9BEED Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
9,000 pcs
On Request
9000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TNPW040230K9BEED Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Failure Rate
Features
Height
Length
Number of Terminations
Operating Temperature
Power
Power (Watts)
Ratings
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

TNPW040230K9BEED Description

Short technical summary and product information.

The Vishay Dale TNPW040230K9BEED is a thin film chip resistor designed for surface mount applications. It offers a precise resistance value of 30.9 kOhms with a tight tolerance of ±0.1%. The component has a power rating of 0.063W and operates within a temperature range of -55°C to 175°C, with a temperature coefficient of ±25ppm/°C.



This resistor features anti-sulfur, automotive AEC-Q200, and moisture-resistant properties, making it suitable for demanding environments. It comes in a compact 0402 (1005 Metric) package, measuring 1.00mm in length and 0.50mm in width, with a height of 0.40mm. The device has two terminations and is supplied on tape and reel.



Key specifications include its thin film composition, AEC-Q200 rating, and operating temperature range. The 0402 package size is ideal for high-density circuit designs. The TNPW e3 series designation indicates specific product characteristics within the Vishay Dale portfolio.

TNPW040230K9BEED Quick Information

Product Type: Chip Resistor
Series: TNPW e3
Canonical Name: Vishay Dale TNPW040230K9BEED Chip Resistor - 30.9 kOhms ±0.1% 0.063W Surface Mount
Subcategory: Chip Resistor - Surface Mount

TNPW040230K9BEED Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TNPW040230K9BEED Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

TNPW040230K9BEED Features

  • Offers 30.9 kOhms resistance with ±0.1% tolerance.
  • Rated for 0.063W power dissipation.
  • Operates from -55°C to 175°C.
  • Features anti-sulfur and moisture resistance.
  • Automotive AEC-Q200 qualified.

TNPW040230K9BEED Applications

  • Suitable for automotive applications.
  • Ideal for moisture-prone environments.
  • Used in high-density circuit designs.
  • Provides precise signal control.

TNPW040230K9BEED FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the TNPW040230K9BEED?

The resistance value is 30.9 kOhms.

What is the tolerance of the TNPW040230K9BEED chip resistor?

The tolerance is ±0.1%.

What is the power rating of the TNPW040230K9BEED?

The power rating is 0.063W.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to 175°C.

What package size is the TNPW040230K9BEED resistor in?

It is in a 0402 (1005 Metric) package.

Does this resistor have automotive qualifications?

Yes, it is Automotive AEC-Q200 qualified.
