| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,770 pcs
|
9770 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Supplier Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

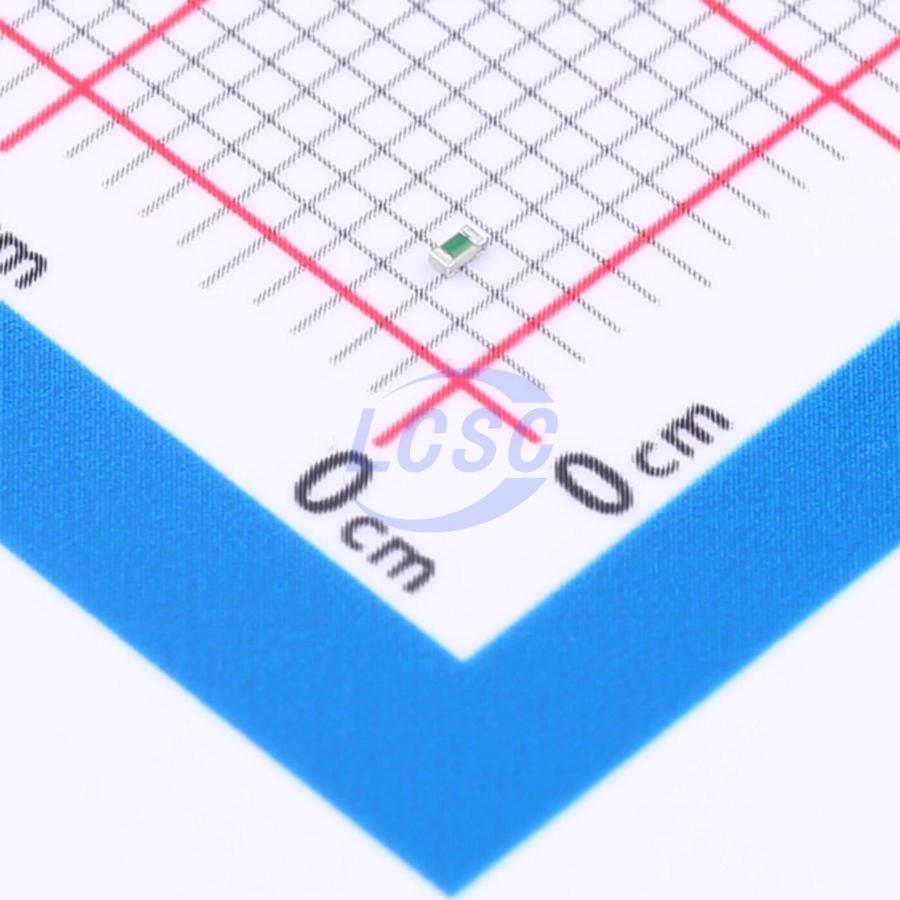

This Vishay Dale TNPW040220K0BEED is a high-quality surface mount chip resistor designed for demanding applications. It offers a precise resistance value of 20 kΩ with a tight tolerance of ±0.1%, ensuring accuracy in circuit performance.
The resistor is rated for 1/16W of power and operates within a temperature range of -55°C to 155°C. Its construction utilizes thin film technology, contributing to its stability and reliability. The component is AEC-Q200 qualified and features anti-sulfur properties, making it suitable for automotive and harsh environment applications.
Packaged in a compact 0402 (1005 Metric) case, this surface mount resistor measures 1.00mm in length and 0.50mm in width, with a height of 0.40mm. Its small footprint and robust design make it ideal for modern electronic designs where space and performance are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 20 kΩ.
The tolerance is ±0.1%.
The power rating is 0.063W or 1/16W.
The temperature coefficient is ±25ppm/°C.
The operating temperature range is -55°C to 155°C.
The resistor is supplied in the 0402 (1005 Metric) package size.
