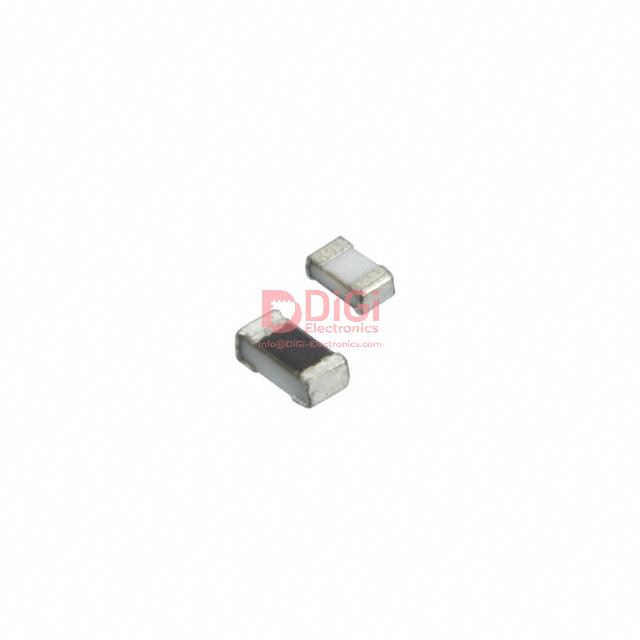

TNPW0402150RBEED The Vishay Dale TNPW0402150RBEED is a surface mount chip resistor with 150 Ohms resistance and a ±0.1% tolerance. It is rated for 1/16W power and features automotive AEC-Q200 compliance.
Mfr Part #:

TNPW0402150RBEED

Available from 1 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale TNPW0402150RBEED is a surface mount chip resistor with 150 Ohms resistance and a ±0.1% tolerance. It is rated for 1/16W power and features automotive AEC-Q200 compliance.
✓ Total Stock: 143 pcs
$ Price Range: $0.02

TNPW0402150RBEED Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
143 pcs
On Request
143 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TNPW0402150RBEED Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Storage Temperature
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

TNPW0402150RBEED Description

Short technical summary and product information.

This Vishay Dale TNPW0402150RBEED is a high-quality chip resistor designed for surface mount applications. It offers a precise resistance value of 150 Ohms with a tight tolerance of ±0.1%, making it suitable for demanding electronic circuits.



The resistor has a power rating of 0.063W (1/16W) and operates within a temperature range of -55°C to 155°C. Its thin film composition ensures stable performance. The component is built to withstand harsh conditions, featuring anti-sulfur properties and automotive AEC-Q200 qualification, along with moisture resistance.



Packaged in a compact 0402 (1005 Metric) case, it is ideal for automated assembly processes. The dimensions are approximately 1.00mm in length, 0.50mm in width, and 0.40mm in height. This part is also noted for its 2 terminations and a temperature coefficient of ±25ppm/°C.



Environmental compliance includes RoHS3 compliance, MSL 1 (Unlimited) moisture sensitivity, and REACH unaffected status. These attributes make the TNPW0402150RBEED a reliable choice for automotive and industrial applications requiring robust performance.

TNPW0402150RBEED Quick Information

Product Type: Chip Resistor - Surface Mount
Series: RG
Canonical Name: Vishay Dale TNPW0402150RBEED Chip Resistor - Surface Mount
Subcategory: Surface Mount

TNPW0402150RBEED Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TNPW0402150RBEED Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

TNPW0402150RBEED Features

  • 150 Ohm resistance with ±0.1% tolerance.
  • Rated for 1/16W power at 0.063W.
  • Automotive AEC-Q200 qualified.
  • Anti-sulfur and moisture resistant.
  • Compact 0402 surface mount package.

TNPW0402150RBEED Applications

  • Suitable for automotive applications.
  • Ideal for high-reliability circuits.
  • Used in demanding environmental conditions.
  • Surface mount assembly compatible.

TNPW0402150RBEED FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the TNPW0402150RBEED chip resistor?

The TNPW0402150RBEED chip resistor has a resistance value of 150 Ohms.

What is the tolerance of the TNPW0402150RBEED resistor?

The tolerance of the TNPW0402150RBEED resistor is ±0.1%.

What is the power rating for the TNPW0402150RBEED chip resistor?

The power rating for the TNPW0402150RBEED chip resistor is 0.063W, or 1/16W.

What is the operating temperature range for this chip resistor?

The operating temperature range for this chip resistor is -55°C to 155°C.

What package size is the TNPW0402150RBEED resistor available in?

The TNPW0402150RBEED resistor is available in the 0402 (1005 Metric) package size.

Does the TNPW0402150RBEED resistor meet automotive standards?

Yes, the TNPW0402150RBEED resistor is rated AEC-Q200 and features anti-sulfur properties.
