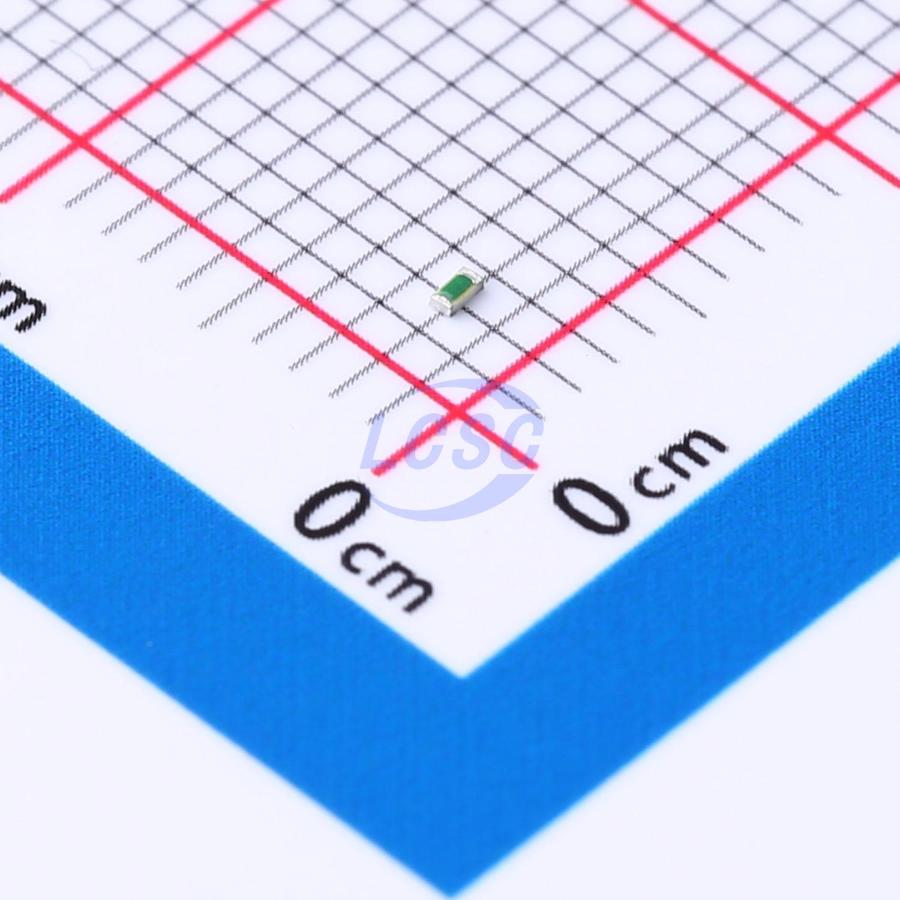

TNPW040210R0DEED The Vishay Dale TNPW040210R0DEED is a surface mount chip resistor with 10 Ohms of resistance and a tolerance of ±0.5%. It has a power rating of 1/16W.
Mfr Part #:

TNPW040210R0DEED

Available from 1 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale TNPW040210R0DEED is a surface mount chip resistor with 10 Ohms of resistance and a tolerance of ±0.5%. It has a power rating of 1/16W.
✓ Total Stock: 3,460 pcs
$ Price Range: $0.02

TNPW040210R0DEED Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
3,460 pcs
On Request
3460 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TNPW040210R0DEED Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Composition
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Storage Temperature
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

TNPW040210R0DEED Description

Short technical summary and product information.

This Vishay Dale TNPW040210R0DEED is a surface mount chip resistor designed for various electronic applications. It features a resistance value of 10 Ohms with a tight tolerance of ±0.5%, ensuring precise circuit performance.



The resistor has a power rating of 0.063W (1/16W) and operates within a temperature range of -55°C to 155°C. Its thin film composition and a temperature coefficient of ±25ppm/°C make it suitable for applications requiring stability.



Packaged in a compact 0402 (1005 Metric) case, this component measures 1.00mm in length, 0.50mm in width, and 0.40mm in height. It has 2 terminations and is suitable for surface mounting.



Key features include its anti-sulfur, automotive AEC-Q200, and moisture-resistant properties. The component is RoHS3 compliant and has an MSL rating of 1.

TNPW040210R0DEED Quick Information

Product Type: Chip Resistor - Surface Mount
Canonical Name: Vishay Dale TNPW040210R0DEED Thin Film Resistor 10 Ohm 0.5% 1/16W
Subcategory: Chip Resistor - Surface Mount

TNPW040210R0DEED Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TNPW040210R0DEED Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

TNPW040210R0DEED Features

  • 10 Ohm resistance with ±0.5% tolerance.
  • Rated for 1/16W power dissipation.
  • Operates from -55°C to 155°C.
  • Compact 0402 (1005 Metric) package size.
  • Features AEC-Q200 and anti-sulfur properties.

TNPW040210R0DEED Applications

  • Suitable for automotive applications.
  • Ideal for circuits requiring stability.
  • Used in moisture-sensitive environments.
  • General purpose surface mount resistor.

TNPW040210R0DEED FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resistance value of the TNPW040210R0DEED?

The resistance value is 10 Ohms.

What is the tolerance of the TNPW040210R0DEED resistor?

The tolerance is ±0.5%.

What is the power rating for the TNPW040210R0DEED?

The power rating is 0.063W or 1/16W.

What is the operating temperature range for this resistor?

The operating temperature range is -55°C to 155°C.

What package size is the TNPW040210R0DEED available in?

It is available in the 0402 (1005 Metric) package size.
