| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
9,500 pcs
|
9500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
316 pcs
|
316 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Supplier Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

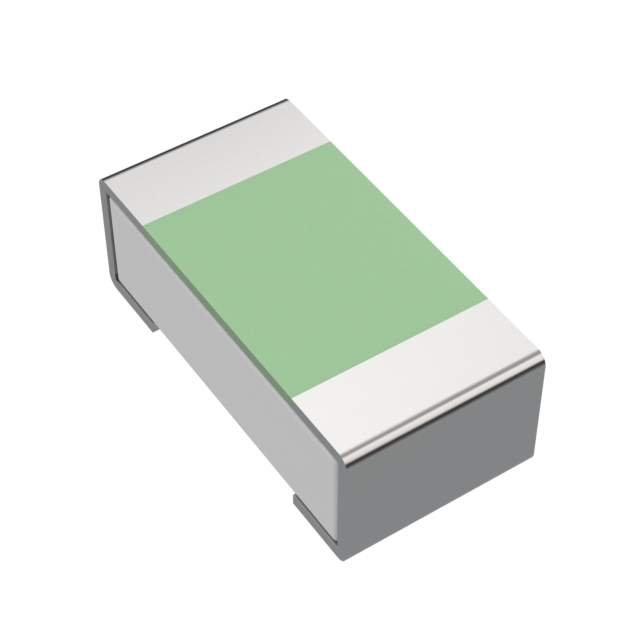

This Vishay Dale TNPW040210K0BEED is a high-precision surface mount chip resistor designed for demanding applications. It features a resistance value of 10 kΩ with a tight tolerance of ±0.1%, ensuring accurate circuit performance.
The resistor has a power rating of 0.063W (1/16W) and a temperature coefficient of ±25ppm/°C, making it suitable for stable operation across a wide temperature range of -55°C to 155°C.
Constructed with thin film technology, this component is housed in a compact 0402 (1005 Metric) package. Its features include anti-sulfur properties, automotive AEC-Q200 qualification, and moisture resistance, making it ideal for harsh environmental conditions.
The dimensions are 1.00mm in length and 0.50mm in width, with a height of 0.40mm. It has two terminations and is rated for MSL 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 10 kΩ.
The tolerance is ±0.1%.
The power rating is 0.063W or 1/16W.
The operating temperature range is -55°C to 155°C.
The package size is 0402 (1005 Metric).
Yes, it is AEC-Q200 qualified and features anti-sulfur properties.
