| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Type | |
| Fastening Type | |
| Housing Color | |
| Industrial Grade | |
| Ingress Protection | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| SVHC Present | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Type |

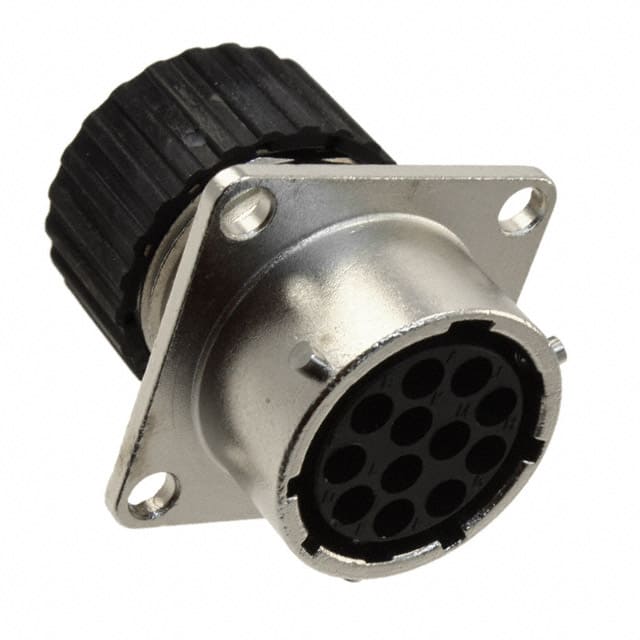

The TNM0S14-0012S1L is a 12 position circular connector receptacle housing from ITT Cannon's Trident series. It is designed for use with female sockets and accepts crimp, solder, and solder cup contacts. The housing features a panel mount with a flange and a detent lock fastening system for secure mating.
The shell is constructed from zinc alloy with a nickel finish, providing durability and corrosion resistance. The housing is shielded for EMI protection and has an IP67 ingress protection rating, making it dust tight and waterproof. The insulator material has a UL94 V-0 flammability rating.
This housing is suitable for harsh environment applications requiring reliable connectivity. The Trident series is known for simple installation and maintenance, with hand insertable contacts and no need for wedge locks or blind seals.
| Qty | Low | High |
|---|---|---|
| 1+ | $23.13 | $23.13 |
| 10+ | $20.88 | $20.88 |
| 25+ | $19.81 | $19.81 |
| 50+ | $19.42 | $19.42 |
| 250+ | $17.25 | $17.25 |
| 500+ | $16.91 | $16.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a receptacle housing for female sockets.
It has 12 positions.
Panel mount with a flange.
IP67 - dust tight and waterproof.
Zinc alloy shell with nickel finish.
Yes, it is shielded.
UL94 V-0.
