| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Type | |
| Fastening Type | |
| Housing Color | |
| Industrial Grade | |
| Ingress Protection | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| SVHC Present | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Type |

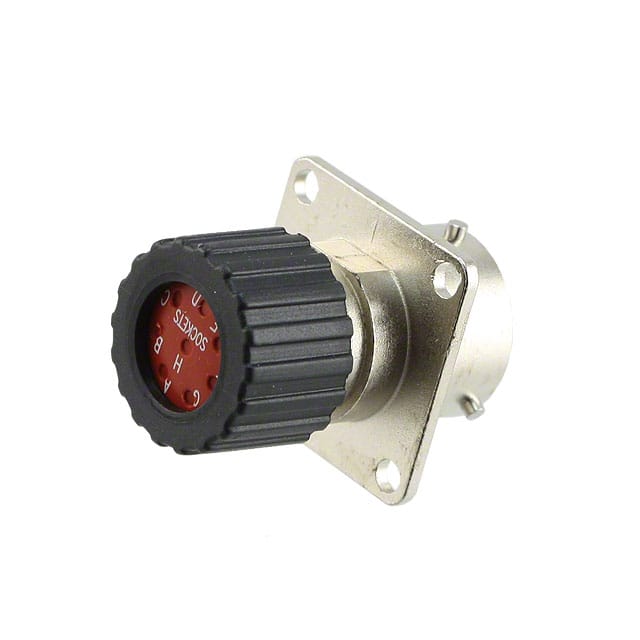

The ITT Cannon TNM0S12-0008S1L is a circular connector receptacle housing designed for use with female socket contacts. It accommodates 8 positions and supports crimp, solder, and solder cup contact termination styles. The housing is panel mounted with a flange feature and secured with a detent lock fastening mechanism.
Constructed with a zinc alloy shell finished in nickel, the housing is shielded and offers IP67 ingress protection, ensuring dust-tight and waterproof performance in demanding environments. The housing color is silver. The material flammability rating is UL94 V-0.
This housing is part of the Trident series from ITT Cannon, known for simple installation and maintenance. It is suitable for harsh-environment applications requiring reliable connectivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $30.95 | $30.95 |
| 10+ | $26.30 | $26.30 |
| 25+ | $24.65 | $24.65 |
| 50+ | $23.55 | $23.55 |
| 100+ | $22.73 | $22.73 |
| 250+ | $21.42 | $21.42 |
| 500+ | $20.88 | $20.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector housing has 8 positions.
It is designed for panel mount with a flange feature.
It has an IP67 rating, meaning it is dust tight and waterproof.
It accepts crimp, solder, and solder cup contacts.
The shell is made of zinc alloy with a nickel finish.
Yes, it is a shielded connector housing.
The material flammability rating is UL94 V-0.
