| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,329 pcs
|
2329 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Type | |
| Fastening Type | |
| Housing Color | |
| Industrial Grade | |
| Ingress Protection | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Type |

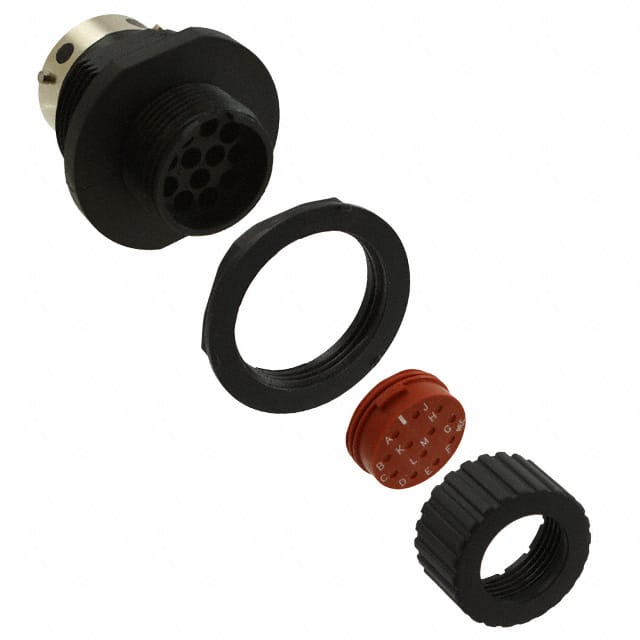

The ITT Cannon TN7S14-0012P1L is a circular connector receptacle housing from the Trident series. It is designed for use with male pins and offers 12 positions in a shell size 14-0012. The housing is constructed from black polyamide (PA) nylon material with a flammability rating of UL94 V-0.
This housing features a panel mount with a bulkhead front side nut mounting feature and a detent lock fastening type for secure mating. It supports multiple contact termination styles including crimp, solder, and solder cup. The housing is unshielded and provides an IP67 ingress protection rating, making it dust tight and waterproof.
Typical applications include harsh environment interconnect solutions where reliable sealing and robust mechanical retention are required. The Trident series is designed for simple installation and maintenance with hand insertable contacts.
| Qty | Low | High |
|---|---|---|
| 1+ | $29.61 | $29.61 |
| 10+ | $25.30 | $25.30 |
| 25+ | $24.16 | $24.16 |
| 250+ | $20.16 | $20.16 |
| 500+ | $19.20 | $19.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a receptacle housing.
It has 12 positions.
It is panel mounted with a bulkhead front side nut.
It has an IP67 rating, meaning it is dust tight and waterproof.
The housing is made of polyamide (PA) nylon with a UL94 V-0 flammability rating.
