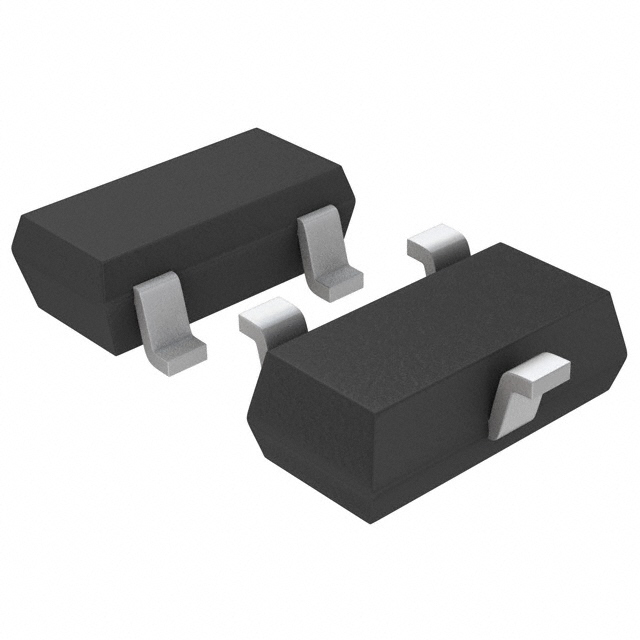

TN2106K1-G The Microchip Technology TN2106K1-G is an N-Channel MOSFET designed for 60V operation with a continuous drain current of 280mA. It is available in a surface mount TO-236AB (SOT23) package.
Mfr Part #:

TN2106K1-G

Available from 1 distributors
Mfr Name: Microchip Technology
Microchip Technology
The Microchip Technology TN2106K1-G is an N-Channel MOSFET designed for 60V operation with a continuous drain current of 280mA. It is available in a surface mount TO-236AB (SOT23) package.
✓ Total Stock: 4,000 pcs
$ Price Range: $2.56

TN2106K1-G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TN2106K1-G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Supplier Device Package
Supplier Package
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

TN2106K1-G Description

Short technical summary and product information.

The Microchip Technology TN2106K1-G is a single N-Channel MOSFET featuring a drain-to-source voltage (Vdss) of 60V and a continuous drain current (Id) of 280mA at Tj. It offers a maximum on-resistance (Rds On) of 2.5 Ohms at 500mA and 10V gate drive.



This MOSFET operates within a temperature range of -55°C to 150°C (TJ) and has a maximum power dissipation of 360mW (Tc). The input capacitance (Ciss) is 50pF at 25V, and the gate threshold voltage (Vgs(th)) is 2V at 1mA. The gate-source voltage (Vgs) maximum is ±20V.



Packaged in a TO-236AB (SOT23) surface mount configuration, the TN2106K1-G is suitable for various electronic applications requiring a compact and reliable MOSFET. Its specifications make it a versatile component for switching and amplification circuits.

TN2106K1-G Quick Information

Product Type: MOSFET
Canonical Name: Microchip Technology TN2106K1-G N-Channel MOSFET
Subcategory: N-Channel

TN2106K1-G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TN2106K1-G Estimated Pricing

Qty Low High
1+ $2.56 $2.56

Estimated market price range - modelled values for guidance only, not live distributor offers.

TN2106K1-G Features

  • 60V drain-to-source voltage rating.
  • 280mA continuous drain current.
  • 2.5 Ohm maximum on-resistance.
  • Surface mount TO-236AB (SOT23) package.
  • -55°C to 150°C operating temperature range.

TN2106K1-G Applications

  • Suitable for general switching applications.
  • Used in low-power electronic circuits.
  • Ideal for compact designs.
  • Component for power management.

TN2106K1-G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-to-source voltage for the TN2106K1-G?

The maximum drain-to-source voltage (Vdss) for the TN2106K1-G is 60V.

What is the continuous drain current of the TN2106K1-G?

The continuous drain current (Id) for the TN2106K1-G is 280mA at Tj.

What is the maximum on-resistance for the TN2106K1-G?

The maximum on-resistance (Rds On) for the TN2106K1-G is 2.5 Ohms when measured at 500mA and 10V gate drive.

What is the operating temperature range for this MOSFET?

The TN2106K1-G MOSFET operates within a temperature range of -55°C to 150°C (TJ).

What package type is the TN2106K1-G available in?

The TN2106K1-G is available in a TO-236AB (SOT23) package, which is a surface mount type.

Is the TN2106K1-G RoHS compliant?

Yes, the TN2106K1-G is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the TN2106K1-G?

The Moisture Sensitivity Level (MSL) for the TN2106K1-G is 1 Unlimited.
