| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Material | |
| Mounting Type | |
| Operate Time | |
| Operating Temperature | |
| Release Time | |
| Temperature Rise | |
| Voltage |

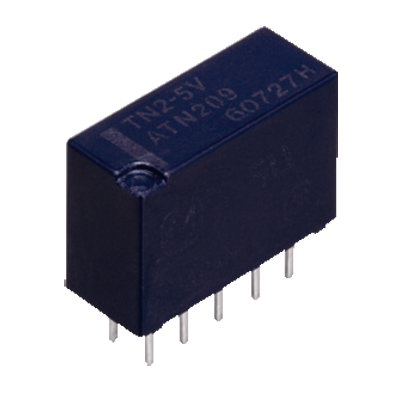

The NAIS TN2-5V is a slim polarized relay designed for high-density mounting. It features a 2 Form C contact arrangement and Gold-clad silver contact material.
This relay boasts high sensitivity with a nominal operating power of 140 mW for single-side stable 3-12 V DC types. It has a maximum switching capacity of 1 A at 30 V DC and 0.5 A at 125 V AC, with a maximum switching power of 30 W (resistive load).
Key electrical characteristics include an initial contact resistance of 60 m℆ (max) and an initial insulation resistance of 1,000 M℆ (min) at 500 V DC. The relay also provides a surge voltage withstand of 1,500 V FCC Part 68.
Designed for operation in a wide ambient temperature range of -40°C to +70°C, the TN2-5V has a mechanical life of 10,000,000 operations and an electrical life of 2,000,000 operations at 1 A 30 V DC resistive load. It is suitable for through-hole mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The NAIS TN2-5V relay has a 2 Form C contact arrangement.
The maximum switching capacity is 1 A at 30 V DC and 0.5 A at 125 V AC (resistive load).
The nominal operating power for the single side stable 3-12 V DC type is 140 mW.
The operating temperature range is -40 °C to +70 °C.
The product is listed as RoHS3 Compliant.
