TN16-0450-01 The Tiger Power TN16-0450-01 is a 470W AC/DC switching power supply with dual outputs of 12V and 54V. It operates from a wide input voltage range of 90-264 Vac.
Mfr Part #:

TN16-0450-01

Mfr Name: Tiger Power
Tiger Power
The Tiger Power TN16-0450-01 is a 470W AC/DC switching power supply with dual outputs of 12V and 54V. It operates from a wide input voltage range of 90-264 Vac.
Stock on Request

TN16-0450-01 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Current
Efficiency
Height
Input Frequency
Input Voltage
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Standard Number
Storage Temperature
Type
Voltage

TN16-0450-01 Description

Short technical summary and product information.

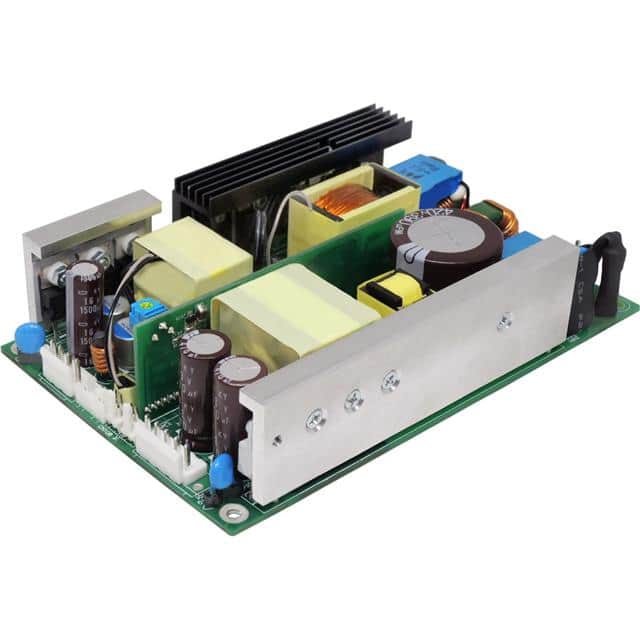

The Tiger Power TN16-0450-01 is an open-frame AC/DC switching power supply designed for chassis mounting. It delivers a rated power of 470W and features dual outputs, providing 12Vdc and 54Vdc. The unit accepts a wide input voltage range from 90 to 264 Vac and operates at a frequency of 47 to 63 Hz, with an efficiency of up to 90% at 230Vac.



Key electrical specifications include a maximum output current of 8.34A for both channels and a hold-up time of at least 10ms. The power supply is designed to operate within an ambient temperature range of -20°C to +70°C. Its dimensions are 101.6mm in width, 152.4mm in length, and 33.8mm in height.



This power supply complies with IEC/UL 62368-1 standards and meets IEEE 802.3af/at/bt PSE requirements. It also features a Mean Time Between Failures (MTBF) of over 100,000 hours under specific conditions. The TN16-0450-01 is suitable for industrial applications, IP-PBX systems, and PoE switches.

TN16-0450-01 Quick Information

Product Type: AC DC Converter
Canonical Name: Tiger Power TN16-0450-01 470W PoE Dual Output PSU
Subcategory: AC DC Converters

TN16-0450-01 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TN16-0450-01 Features

  • 470W rated power with dual 12V/54V outputs.
  • Wide 90-264 Vac input voltage range.
  • High efficiency up to 90%.
  • Operates in -20°C to +70°C temperature range.
  • Complies with IEC/UL 62368-1 and IEEE 802.3af/at/bt.

TN16-0450-01 Applications

  • Suitable for industrial applications.
  • Designed for IP-PBX systems.
  • Used in PoE switch applications.
  • Ideal for power conversion needs.

TN16-0450-01 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the rated power of the TN16-0450-01?

The rated power is 470W.

What are the output voltages for the TN16-0450-01?

The TN16-0450-01 has dual outputs of 12 Vdc and 54 Vdc.

What is the input voltage range for this power supply?

The input voltage range is 90~264 Vac.

What is the operating temperature range?

The operating temperature range is -20°C to +70°C.

What is the efficiency of the TN16-0450-01?

The efficiency is 90% at 230Vac/50Hz.

What standards does the TN16-0450-01 comply with?

It complies with IEC/UL 62368-1 and meets IEEE 802.3af/at/bt PSE requirements.
