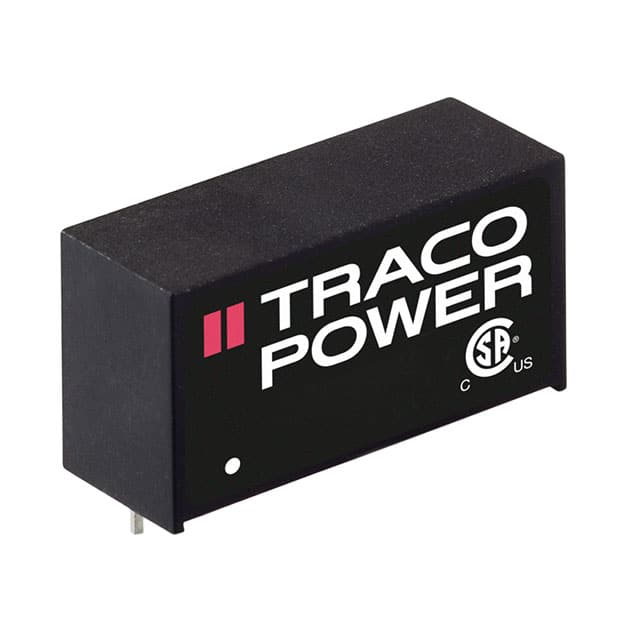

TMV 1215SHI The Traco Power TMV 1215SHI is a 1W isolated DC-DC converter with a single 15V output. It features 5200VDC isolation and comes in a compact SIP-7 through hole package.
Mfr Part #:

TMV 1215SHI

Available from 1 distributors
Mfr Name: Traco Power
Traco Power
The Traco Power TMV 1215SHI is a 1W isolated DC-DC converter with a single 15V output. It features 5200VDC isolation and comes in a compact SIP-7 through hole package.
✓ Total Stock: 10 pcs
$ Price Range: $6.94 - $9.40

TMV 1215SHI Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TMV 1215SHI Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Efficiency
Features
Height
Lead Style
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
SVHC Present
Storage Temperature
Tape & Reel
Type
Voltage
Width
View Similar Products (0)

TMV 1215SHI Description

Short technical summary and product information.

The Traco Power TMV 1215SHI is a 1 Watt unregulated DC-DC converter from the TMV-HI series. It provides a single 15V output at up to 66mA from a 10.8V to 13.2V input (12V nominal). This isolated module offers a very high 5200VDC input-to-output isolation, making it suitable for IGBT applications and other designs requiring robust galvanic isolation.



The converter is housed in a compact 7-SIP module with 4 leads and is designed for through hole mounting. It operates over a wide temperature range of -40°C to +95°C (with derating) and achieves a typical efficiency of 79%. The module includes short circuit protection (SCP) and has a typical no-load input current of 17mA.

TMV 1215SHI Quick Information

Product Type: Isolated DC-DC Converter
Series: TMV-HI
Canonical Name: Traco Power TMV 1215SHI Isolated DC-DC Converter
Subcategory: Through Hole DC-DC Converter

TMV 1215SHI Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 95
REACH Status: REACH Unaffected

TMV 1215SHI Estimated Pricing

Qty Low High
1+ $9.40 $9.40
10+ $8.56 $8.56
20+ $8.43 $8.43
50+ $8.17 $8.17
100+ $7.38 $7.38
200+ $7.11 $7.11
500+ $7.01 $7.01
1,000+ $6.94 $6.94

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMV 1215SHI Features

  • Provides 5200VDC input-to-output isolation.
  • Delivers 15V output at 66mA, 1W power.
  • Operates from 10.8V to 13.2V input range.
  • Compact SIP-7 through hole package.
  • Includes short circuit protection (SCP).

TMV 1215SHI Applications

  • Suitable for IGBT gate drive applications.
  • Ideal for industrial ITE (commercial) equipment.
  • Used in designs requiring high voltage isolation.
  • Fits space-constrained board layouts.

TMV 1215SHI FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage and current of the TMV 1215SHI?

The output voltage is 15V DC with a maximum output current of 66mA.

What is the input voltage range for this converter?

The input voltage range is 10.8V to 13.2V DC, with a nominal input of 12V DC.

What is the isolation voltage rating?

The TMV 1215SHI provides 5200 VDC of input-to-output isolation.

What is the operating temperature range?

The operating temperature range is -40°C to +95°C (with derating).

What package does the TMV 1215SHI come in?

It comes in a 7-SIP Module, 4 Leads package for through hole mounting.

Is the TMV 1215SHI RoHS compliant?

The RoHS status is listed as RoHS3 Compliant, but this is unverified and should be confirmed with the manufacturer.
