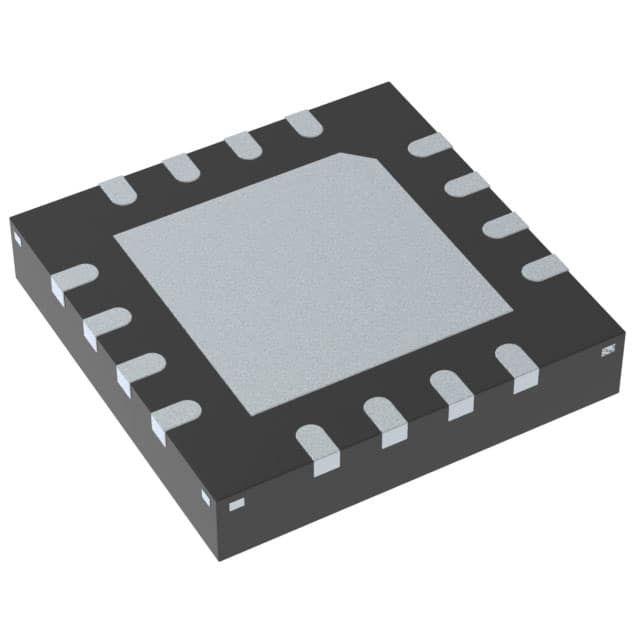

The TMUX7412FRRPR from Texas Instruments is a 4-channel, 1:1 (SPST) complementary metal-oxide semiconductor (CMOS) analog switch designed for robust performance in demanding applications. It offers integrated fault protection, including overvoltage protection up to ±85V and powered-off protection up to ±60V, with interrupt flags to indicate fault status. The device boasts low on-resistance of 11 Ohms typical and flat on-resistance of 10 mΩ typical, with a bandwidth of 550MHz.
This analog switch supports a wide supply voltage range, accommodating dual supplies from ±5V to ±22V or single supplies from 8V to 44V. It is logic capable with 1.8V logic and features fail-safe logic up to 44V, independent of the supply. The TMUX7412FRRPR is immune to latch-up by device construction and has an HBM ESD rating of 6kV.
Packaged in a 16-WQFN (4x4) with an exposed pad, the TMUX7412FRRPR is designed for surface mounting. Its operating temperature range is -40°C to 125°C (TA). Key applications include factory automation and control, programmable logic controllers (PLC), analog input modules, semiconductor test equipment, and data acquisition systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TMUX7412FRRPR operates with supply voltages from 8V to 44V in single supply mode and from ±5V to ±22V in dual supply mode.
The device comes in a 16-WQFN exposed pad package.
The bandwidth is at least 550MHz.
The maximum overvoltage protection is ±85V for source to supplies or drain.
The typical on-resistance is 8.3Ω, with a flat on-resistance of 10mΩ.
