TMUX646ZECR The Texas Instruments TMUX646ZECR is a 10-channel, 2:1 SPDT analog switch designed for high-speed applications. It offers a 6 GHz bandwidth and operates from a 1.5V to 5.5V supply range.
Mfr Part #:

TMUX646ZECR

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TMUX646ZECR is a 10-channel, 2:1 SPDT analog switch designed for high-speed applications. It offers a 6 GHz bandwidth and operates from a 1.5V to 5.5V supply range.
✓ Total Stock: 2,352 pcs
$ Price Range: $0.44

TMUX646ZECR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
2,180 pcs
On Request
2180 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
172 pcs
On Request
172 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TMUX646ZECR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Lead Spacing
Logic Voltage
Mounting Type
Multiplexer
Number of Channels
On
Operating Temperature
Supplier Device Package
Supplier Package
Switch Circuit
Voltage
View Similar Products (0)

TMUX646ZECR Description

Short technical summary and product information.

The Texas Instruments TMUX646ZECR is an optimized 10-channel, single-pole, double-throw (SPDT) bidirectional switch designed for high-speed applications. It supports interfaces such as MIPI CSI/DSI, SATA, LVDS, RGMII, DDR, and Ethernet.



Key electrical specifications include a high bandwidth of 6 GHz, low typical on-resistance of 6 Ω, and ultra-low crosstalk of -40 dB. The device operates over a supply voltage range of 1.5 V to 5.5 V and is compatible with 1.2 V logic. It features powered-off protection, ensuring I/Os are Hi-Z when VDD is 0 V.

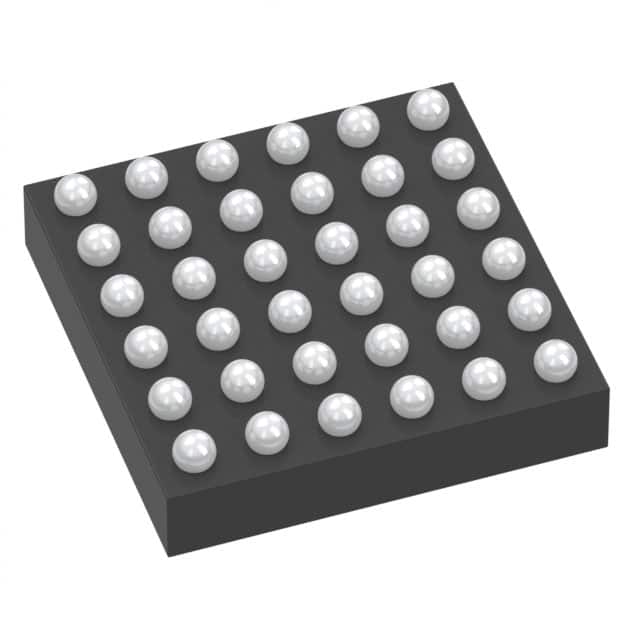

This switch is suitable for applications like mobile phones, tablets, PCs, virtual and augmented reality devices, drones, and medical equipment. It is housed in a 36-pin NFBGA package and is designed for surface mount.



The operating temperature range is -40°C to 85°C. ESD protection is provided with 6-kV HBM and 2-kV CDM ratings.

TMUX646ZECR Quick Information

Product Type: Analog Switch
Canonical Name: TMUX646 6 GHz, 5 V, 2:1 (SPDT) 10-Channel MIPI Switch with 1.8-V Logic Support
Subcategory: Special Purpose

TMUX646ZECR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TMUX646ZECR Estimated Pricing

Qty Low High
1+ $0.44 $0.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMUX646ZECR Features

  • 10-channel, 2:1 SPDT analog switch.
  • 6 GHz high bandwidth performance.
  • Low 6 Ohm typical on-resistance.
  • Wide 1.5V to 5.5V supply range.
  • Operates -40°C to 85°C temperature range.

TMUX646ZECR Applications

  • Suitable for MIPI CSI/DSI applications.
  • Supports SATA and LVDS interfaces.
  • Ideal for mobile phone designs.
  • Used in PC and notebook systems.
  • Applicable for virtual reality devices.

TMUX646ZECR FAQs

5 frequently asked questions generated from this part’s specifications.
What is the supply voltage range for the TMUX646ZECR?

The supply voltage range is 1.5 V to 5.5 V.

What is the typical on-resistance of the TMUX646ZECR?

The typical on-resistance is 6 Ω.

What is the bandwidth of the TMUX646ZECR?

The bandwidth is 6 GHz.

What is the operating temperature range for this analog switch?

The operating temperature range is -40°C to 85°C.

What package type is the TMUX646ZECR available in?

The TMUX646ZECR is available in a 36-UFBGA package.
