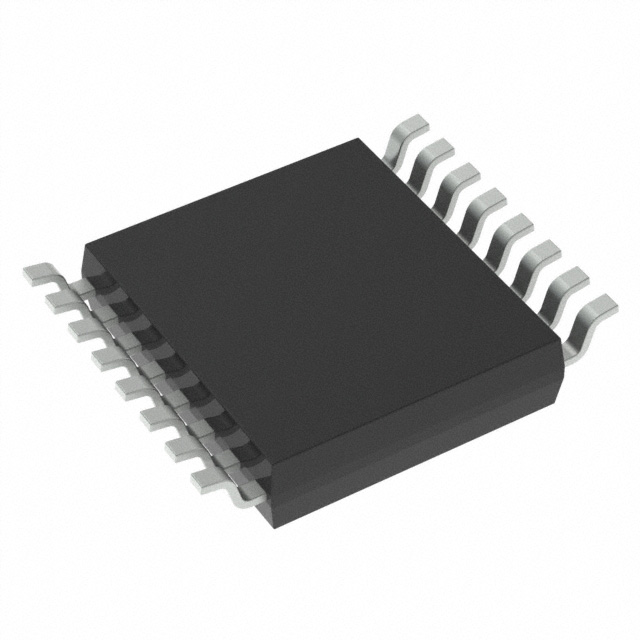

The TMUX1308PWR from Texas Instruments is a general-purpose complementary metal-oxide semiconductor (CMOS) multiplexer. This specific device is configured as an 8:1, 1-channel (single-ended) multiplexer.
It supports bidirectional analog and digital signals across its source (Sx) and drain (Dx) pins, operating within a wide supply voltage range of 1.62 V to 5.5 V. Key electrical characteristics include a typical on-resistance of 195 Ohms, a channel capacitance of 2 pF (off) / 7 pF (off), and a typical crosstalk of -90 dB at 1 MHz. The switch time is rated at 32 ns for turn-on and 40 ns for turn-off, with a bandwidth of 500 MHz.
Designed with injection current control, the TMUX1308 eliminates the need for external protection circuitry. It also features back-powering protection and no internal ESD diode path to VDD, preventing unintended power delivery. The device operates reliably within an ambient temperature range of -40°C to 125°C.
The TMUX1308PWR is supplied in a 16-TSSOP package, suitable for surface mount applications. Its 1.8 V logic compatible thresholds ensure compatibility with both TTL and CMOS logic levels when operating with a valid supply voltage. This part is pin-compatible with industry-standard multiplexers like the 4051 and 4851.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 125°C.
The typical on-resistance is 195 Ohms.
The bandwidth is 500 MHz.
The TMUX1308PWR is available in a 16-TSSOP package.
The supply voltage range is 1.62V to 5.5V.
The TMUX1308PWR contains 1 circuit.
