| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bandwidth | |
| Capacitance | |
| Channel | |
| Channel Capacitance (CS(off), CD(off)) | |
| Charge Injection | |
| Configuration | |
| Crosstalk | |
| Current | |
| ESD Protection | |
| Mounting Type | |
| Multiplexer | |
| Number of Circuits | |
| On | |
| Operating Temperature | |
| Supplier Device Package | |
| Supply Current | |
| Switch Circuit | |
| Switch Time (Ton, Toff) (Max) | |
| Voltage |
The TMUX1104DQAR is a precision complementary metal-oxide semiconductor (CMOS) multiplexer from Texas Instruments. It offers a single channel with a 4:1 configuration, supporting bidirectional analog and digital signals.
Key electrical specifications include a wide operating supply range of 1.08V to 5.5V, a typical on-resistance of 2.5Ω, and a bandwidth of 155MHz. The device exhibits low leakage current and low charge injection, making it suitable for precise signal routing. It operates across a temperature range of -40°C to 125°C.

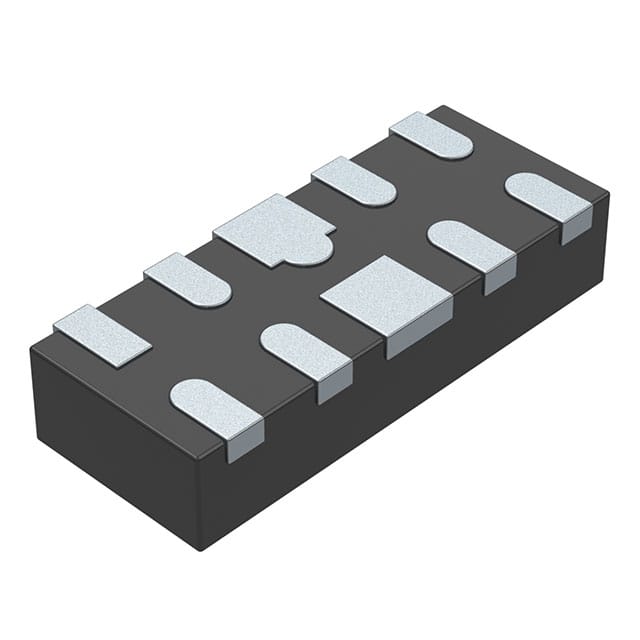

Designed with features like 1.8V logic compatible control inputs, break-before-make switching, and fail-safe logic, the TMUX1104DQAR ensures robust performance. It is available in a 10-USON package, suitable for surface mount applications.
This multiplexer is part of Texas Instruments' precision switches and multiplexers family, designed for applications requiring high accuracy and low signal distortion.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.30 | $1.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TMUX1104DQAR operates from a single supply voltage range of 1.08V to 5.5V.
The TMUX1104DQAR is available in a 10-USON and a 10-UFDFN package, both for surface mounting.
The operating temperature range for the TMUX1104DQAR is -40°C to 125°C.
The TMUX1104DQAR is RoHS3 Compliant.
The typical on-resistance for the TMUX1104DQAR is 2.5Ω.
The TMUX1104DQAR has a bandwidth of 155MHz.
