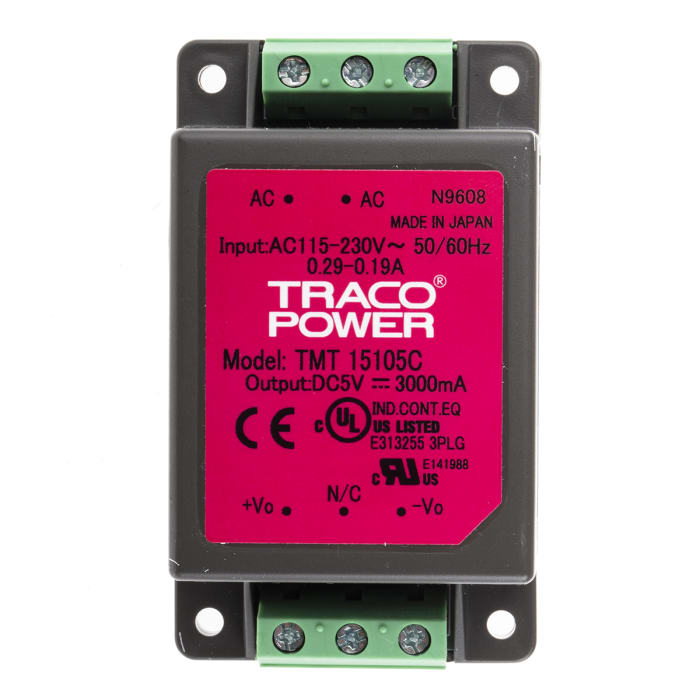

The Traco Power TMT 15105C is an enclosed AC/DC power supply module designed for commercial and industrial electronic equipment. It delivers a 15W output power with a nominal 5V DC output voltage and a maximum current of 3A. The unit features a universal input voltage range of 85-264V AC, making it suitable for global applications.
This power supply is designed for chassis mounting, utilizing a screw terminal block for easy installation. It offers key protection features including short circuit and overload protection. The TMT 15105C operates within an ambient temperature range of -25°C to 50°C with derating and boasts an efficiency of 83%.
Compliance with international safety standards such as UL/cUL 508, UL 60950-1, and UL 60601-1 is confirmed, along with EMI compliance to EN 55022 Class B and FCC Level B. The device also meets RoHS3 compliance. Its compact dimensions (77.0mm x 45.0mm x 26.4mm) make it suitable for space-critical applications.
The Traco Power TMT 15105C has a nominal output voltage of 5 VDC.
The TMT 15105C can provide a maximum output current of 3 A.
The TMT 15105C accepts a universal input voltage range of 85-264 VAC.
The operating temperature range for the TMT 15105C is -25°C to 50°C, with derating above 50°C.
Yes, the TMT 15105C is RoHS3 compliant.
