| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

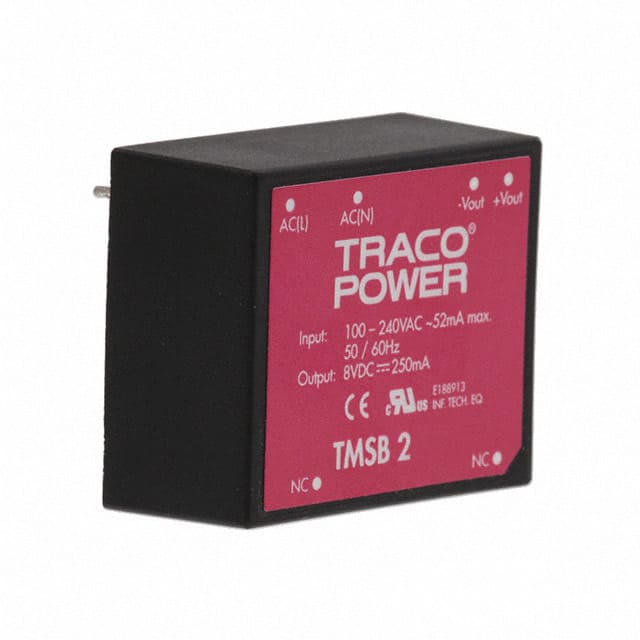

The Traco Power TMSB 2-108 is a compact, encapsulated AC/DC power module from the TMSB 2 Series, delivering 2 Watts of output power. It provides a single regulated 8VDC output at up to 250mA.
This converter features a universal input voltage range of 85-264 VAC or 120-370 VDC, making it suitable for global applications. It operates efficiently with a typical efficiency of 72% at full load and has a low no-load power consumption of less than 150mW. The module includes continuous short circuit and overload protection for enhanced reliability.
Designed for direct PCB mounting, the TMSB 2-108 utilizes a through-hole package. Its operating temperature range is -30°C to +70°C, with derating above +60°C. The unit meets EMI standards EN 55022 Class B and FCC Level B, and carries approvals from CB, CE, and cURus.
Applications include household appliances and ITE commercial equipment, where its compact size and robust performance are beneficial.
The input voltage range is 85-264 VAC or 120-370 VDC.
The output is 8 VDC at up to 250 mA (2W).
The input-to-output isolation voltage is 4242 VAC.
The operating temperature range is -30°C to +70°C with derating.
It uses a 7-DIP through-hole module with 6 leads.
Yes, it features continuous short circuit protection with automatic recovery.
The dimensions are 34.2mm x 28.4mm x 14.8mm.
