TMS320VC5510AZGWA1

The TMS320VC5510AZGWA1 from Texas Instruments is a high-performance, low-power, fixed-point digital signal processor (DSP) based on the TMS320C55x architecture. It features a 16-bit CPU capable of operating at clock rates of 160 MHz or 200 MHz, with an instruction cycle time of 6.25 ns or 5 ns respectively. This DSP includes dual multipliers supporting up to 400 Million Multiply-Accumulates Per Second (MMACS).

Key internal memory includes 160KB of on-chip RAM and 32KB of on-chip ROM, with a maximum addressable external memory space of 8MB. The device offers a 32-bit external memory interface (EMIF) with glueless interface capabilities to various memory types like SRAM, EPROM, SDRAM, and SBSRAM. It operates with a core supply voltage of 1.6V and an I/O supply voltage of 3.3V.

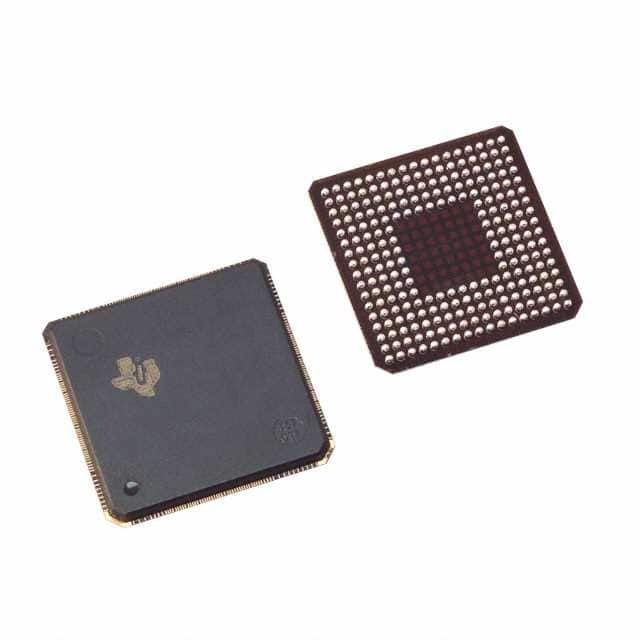

Designed for surface mounting, the TMS320VC5510AZGWA1 comes in a 240-terminal MicroStar BGA package (GGW suffix) or similar variants like NFBGA (ZAV, GBC) and UBGA (ZGW). The operating temperature range is -40°C to 85°C (TC). On-chip peripherals include two 20-bit timers, a six-channel DMA controller, three multichannel buffered serial ports (McBSPs), and a 16-bit parallel enhanced host-port interface (EHPI).
