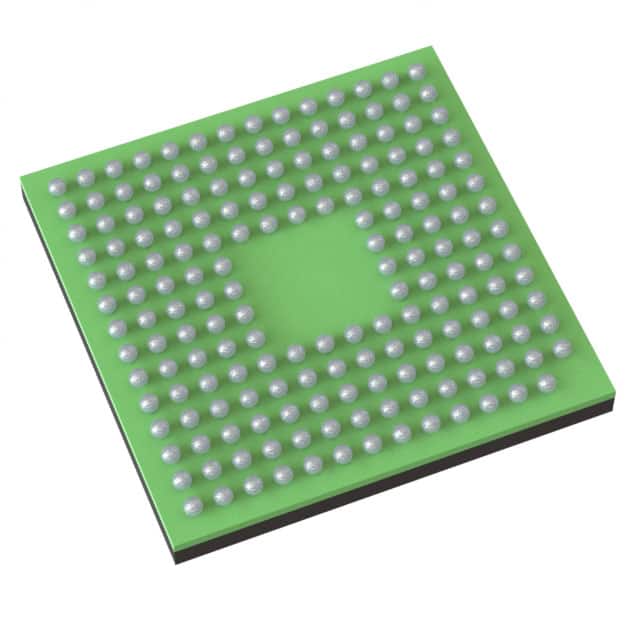

TMS320F2812GBBA The Texas Instruments TMS320F2812GBBA is a 32-bit microcontroller featuring a 150MHz C28x core and 256KB of flash program memory. It is housed in a 179-NFBGA package.
Mfr Part #:

TMS320F2812GBBA

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TMS320F2812GBBA is a 32-bit microcontroller featuring a 150MHz C28x core and 256KB of flash program memory. It is housed in a 179-NFBGA package.
✓ Total Stock: 5,080 pcs
$ Price Range: $19.70

TMS320F2812GBBA Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
3,480 pcs
On Request
3480 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
1,600 pcs
On Request
1600 pcs On Request 1 On Request On Request 21+22+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TMS320F2812GBBA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connectivity
Core Processor
Core Size
Data Converters
Industrial Grade
Lead Spacing
Medical Grade
Military Grade
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Voltage
View Similar Products (0)

TMS320F2812GBBA Description

Short technical summary and product information.

The Texas Instruments TMS320F2812GBBA is a high-performance 32-bit microcontroller based on the C28x core, operating at speeds up to 150MHz. It offers 256KB of flash program memory and 18KB of SARAM, along with 16-bit Analog-to-Digital converters.



This microcontroller supports various peripherals including DMA, POR, PWM, and WDT, and offers connectivity options such as CANbus, EBI/EMI, McBSP, SCI, SPI, and UART/USART. It features 56 General-Purpose I/O pins and an internal oscillator.



The device is designed for surface mount installation and comes in a 179-NFBGA (12x12) package. It operates within a temperature range of -40°C to 85°C (TA), with some variants supporting up to 125°C.



Key electrical characteristics include a 1.81V to 2V operating voltage. The TMS320F2812GBBA is suitable for embedded applications requiring significant processing power and peripheral integration.

TMS320F2812GBBA Quick Information

Product Type: Microcontroller
Canonical Name: Texas Instruments TMS320F2812GBBA 32-bit C28x Microcontroller
Subcategory: 32-bit MCU

TMS320F2812GBBA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TMS320F2812GBBA Estimated Pricing

Qty Low High
1+ $19.70 $19.70

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMS320F2812GBBA Features

  • High-performance 32-bit C28x core.
  • Operates at a speed of 150MHz.
  • 256KB flash program memory.
  • 179-NFBGA surface mount package.
  • Wide operating temperature range.

TMS320F2812GBBA Applications

  • Embedded control systems.
  • Motor control applications.
  • Signal processing tasks.
  • Automotive applications.
  • Industrial automation.

TMS320F2812GBBA FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the TMS320F2812GBBA?

The operating voltage is 1.81V to 2V.

What package type is the TMS320F2812GBBA available in?

It is available in a 179-NFBGA (12x12) package, also referred to as 179-LFBGA or NFBGA (GBB).

What is the operating temperature range of the TMS320F2812GBBA?

The operating temperature range is -40°C to 85°C (TA), with some variants supporting up to 125°C.

What is the RoHS status of the TMS320F2812GBBA?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this component?

The Moisture Sensitivity Level is 1.

What is the REACH status for the TMS320F2812GBBA?

The REACH status is Unaffected.
