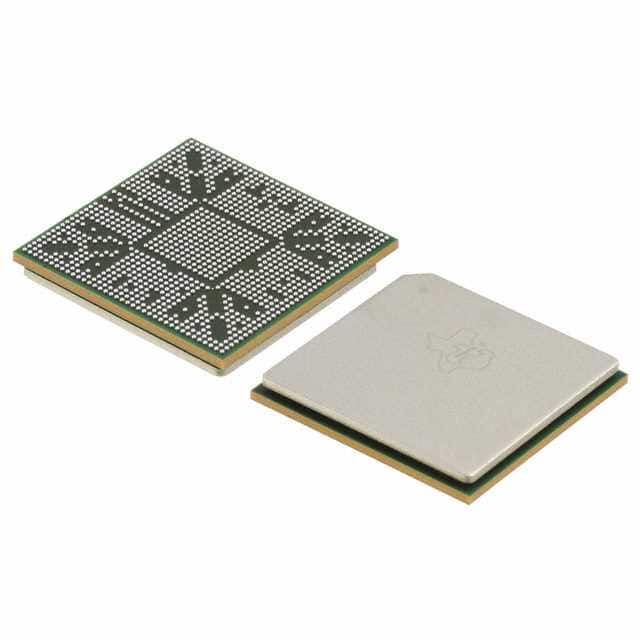

TMS320DM8168SCYG2 The Texas Instruments TMS320DM8168SCYG2 is a DaVinci Digital Media Processor featuring an ARM Cortex-A8 core up to 1.20 GHz and a C674x VLIW DSP up to 1 GHz. It includes SGX530 3D graphics acceleration.
Mfr Part #:

TMS320DM8168SCYG2

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TMS320DM8168SCYG2 is a DaVinci Digital Media Processor featuring an ARM Cortex-A8 core up to 1.20 GHz and a C674x VLIW DSP up to 1 GHz. It includes SGX530 3D graphics acceleration.
✓ Total Stock: 32,000 pcs
$ Price Range: $122.21

TMS320DM8168SCYG2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
32,000 pcs
On Request
32000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TMS320DM8168SCYG2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Rate
Display Type
Graphics Acceleration
Interface
Mounting Type
Non
On
Operating Temperature
Supplier Device Package
Type
Voltage
View Similar Products (0)

TMS320DM8168SCYG2 Description

Short technical summary and product information.

The Texas Instruments TMS320DM8168SCYG2 is a high-performance DaVinci Digital Media Processor designed for multimedia and industrial networking applications. It integrates an ARM Cortex-A8 RISC processor operating at up to 1.20 GHz and a C674x VLIW DSP core running at up to 1 GHz, capable of 8000 MIPS and 6000 MFLOPS.



This processor features the SGX530 3D graphics engine, delivering up to 30 MTriangles per second and supporting OpenGL ES 1.1 and 2.0. It offers extensive connectivity options including Ethernet, PCI, USB, and Serial ATA. The device operates within a temperature range of -40°C to 105°C and is packaged in a 1031-FCBGA (25x25 mm) surface mount configuration.



Supported operating systems include Android, DSP/BIOS, and Linux, making it versatile for various embedded systems. Key internal memory includes 32-KB instruction and data caches, a 256-KB L2 cache, and 512KB of On-Chip Memory Controller (OCMC) RAM.

TMS320DM8168SCYG2 Quick Information

Product Type: Digital Media Processor
Series: TMS320DM816x
Canonical Name: Texas Instruments TMS320DM8168SCYG2 Digital Media Processor
Subcategory: Digital Media System-on-Chip (DMSoC)

TMS320DM8168SCYG2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TMS320DM8168SCYG2 Estimated Pricing

Qty Low High
1+ $122.21 $122.21

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMS320DM8168SCYG2 Features

  • Dual-core processor: ARM Cortex-A8 and C674x DSP.
  • High-speed graphics with SGX530 3D engine.
  • Wide range of interfaces including Ethernet and USB.
  • Operates from -40°C to 105°C.
  • 1031-FCBGA surface mount package.

TMS320DM8168SCYG2 Applications

  • Ideal for multimedia processing tasks.
  • Suitable for industrial networking systems.
  • Powers embedded systems requiring graphics.
  • Supports Android, Linux, and DSP/BIOS.

TMS320DM8168SCYG2 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the TMS320DM8168SCYG2?

The operating temperature range is -40°C to 105°C.

What type of processor is the TMS320DM8168SCYG2?

It is a Digital Media System-on-Chip (DMSoC) with ARM Cortex-A8 and C674x DSP cores.

What are the clock speeds for the ARM and DSP cores?

The ARM Cortex-A8 core runs up to 1.20 GHz, and the C674x VLIW DSP core runs up to 1 GHz.

Does the TMS320DM8168SCYG2 have graphics acceleration?

Yes, it features the SGX530 3D Graphics Engine.

What package type is the TMS320DM8168SCYG2 in?

It is in a 1031-FCBGA (25x25 mm) package and is surface mountable.

What operating systems are supported by this processor?

Supported operating systems include Android, DSP/BIOS, and Linux.
