TMS320DM6446BZWT8 The Texas Instruments TMS320DM6446BZWT8 is a Digital Media System-on-Chip (DMSoC) with dual CPU cores. It offers high clock speeds and a wide operating temperature range.
Mfr Part #:

TMS320DM6446BZWT8

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TMS320DM6446BZWT8 is a Digital Media System-on-Chip (DMSoC) with dual CPU cores. It offers high clock speeds and a wide operating temperature range.
✓ Total Stock: 9,430 pcs
$ Price Range: $51.00

TMS320DM6446BZWT8 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,750 pcs
On Request
5750 pcs On Request 1 On Request On Request On Request On Request On Request
Romaks Technologies ✓
Non-Authorised Inventory information
3,477 pcs
On Request
3477 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
203 pcs
On Request
203 pcs On Request 1 On Request On Request 1219+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TMS320DM6446BZWT8 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Rate
Interface
Mounting Type
Non
On
Operating System
Operating Temperature
SVHC Present
Supplier Device Package
Type
Voltage
View Similar Products (0)

TMS320DM6446BZWT8 Description

Short technical summary and product information.

The Texas Instruments TMS320DM6446BZWT8 is a high-performance Digital Media System-on-Chip (DMSoC) designed for demanding applications. It integrates a 32-/64-bit TMS320C64x+ DSP core and a 32-/64-bit ARM926EJ-S core, supporting clock rates up to 810MHz for the DSP and 405MHz for the ARM processor.



This device features a comprehensive set of interfaces including ASP, EBI/EMI, Host Interface, I²C, SPI, UART, and USB. It operates within a temperature range of -40°C to 105°C (TC) and requires supply voltages of 1.8V and 3.3V. The chip includes 8kB of ROM and 160kB of on-chip RAM.

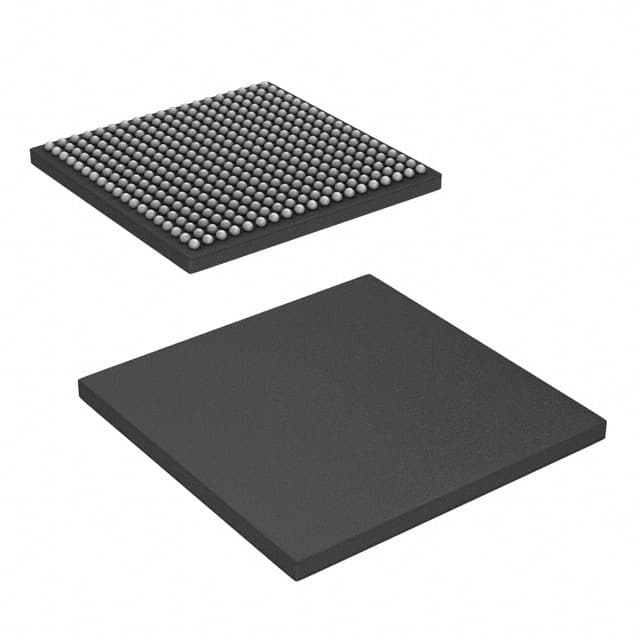

Packaged in a 361-NFBGA (16x16) or 361-LFBGA, the TMS320DM6446BZWT8 is designed for surface mount applications. Its robust feature set makes it suitable for various digital media processing tasks.

TMS320DM6446BZWT8 Quick Information

Product Type: Digital Media System-on-Chip (DMSoC)
Series: TMS320DM6446
Canonical Name: Texas Instruments TMS320DM6446BZWT8 Digital Media System-on-Chip
Subcategory: Digital Media System-on-Chip (DMSoC)

TMS320DM6446BZWT8 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TMS320DM6446BZWT8 Estimated Pricing

Qty Low High
1+ $51.00 $51.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMS320DM6446BZWT8 Features

  • Dual 32-/64-bit CPU cores (DSP and ARM).
  • High clock rates up to 810MHz DSP.
  • Wide operating temperature range of -40°C to 105°C.
  • Multiple interface options including USB and SPI.
  • Surface mount 361-NFBGA package.

TMS320DM6446BZWT8 Applications

  • Suitable for digital media processing.
  • Ideal for embedded system designs.
  • Supports various operating systems.
  • High-performance signal processing tasks.

TMS320DM6446BZWT8 FAQs

5 frequently asked questions generated from this part’s specifications.
What are the clock rates for the TMS320DM6446BZWT8?

The TMS320DM6446BZWT8 has clock rates of 513-, 594-, 810-MHz for the C64x+ DSP core and 256.5-, 297-, 405-MHz for the ARM926EJ-S core.

What is the operating temperature range for this DSP?

The operating temperature range for the TMS320DM6446BZWT8 is -40°C to 105°C (TC).

What type of package is the TMS320DM6446BZWT8 in?

The TMS320DM6446BZWT8 is available in a 361-NFBGA (16x16) or 361-LFBGA package.

What are the supported operating systems for the TMS320DM6446BZWT8?

Supported operating systems include INTEGRITY, Linux, Neutrino, PrOS, and Windows Embedded CE.

What interfaces does the TMS320DM6446BZWT8 support?

It supports ASP, EBI/EMI, Host Interface, I²C, SPI, UART, and USB interfaces.
