Mfr Part #:

TMS320DM642AZDK5

The Texas Instruments TMS320DM642AZDK5 is a high-performance fixed-point digital signal processor designed for video and imaging applications. It features a 500MHz clock rate and 160kB of on-chip memory.

✓ Total Stock: 7,117 pcs

$ Price Range: $56.92

TMS320DM642AZDK5 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	6,500 pcs On Request	6500 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	617 pcs On Request	617 pcs	On Request	1	On Request	On Request	10+	On Request	On Request

TMS320DM642AZDK5 Description

Short technical summary and product information.

The TMS320DM642AZDK5 from Texas Instruments is a powerful Video/Imaging Fixed-Point Digital Signal Processor. It operates at a clock rate of 500MHz, offering 4000 MIPS performance. This DSP features a VelociTI.2™ extensions to the TMS320C64x™ DSP core, with eight highly independent functional units, including six ALUs and two multipliers.

Key electrical specifications include 160kB of on-chip memory, a 64-bit external memory interface, and a 3.3V operating voltage. The processor supports multiple interfaces such as Host Interface, I²C, McASP, McBSP, and PCI, along with a 10/100 Mb/s Ethernet MAC. It also includes an Enhanced Direct-Memory-Access (EDMA) controller with 64 independent channels.

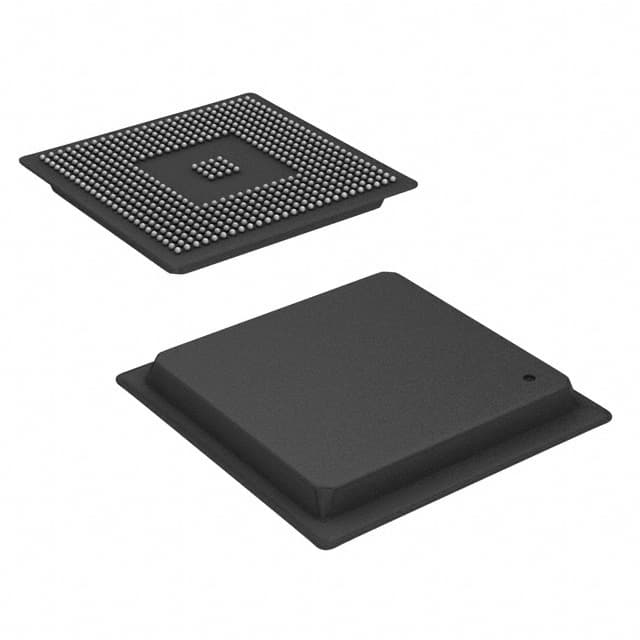

Packaged in a 548-FCBGA (23x23) with surface mount, this DSP is suitable for demanding embedded applications. The operating temperature range is 0°C to 90°C (TC). Its architecture supports both Little Endian and Big Endian formats, providing flexibility in system design.

TMS320DM642AZDK5 Quick Information

Product Type: Digital Signal Processor

Series: C64x

Canonical Name: TMS320DM642AZDK5 Video/Imaging Fixed-Point Digital Signal Processor

Subcategory: Digital Signal Processors

TMS320DM642AZDK5 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TMS320DM642AZDK5 Estimated Pricing

Qty	Low	High
1+	$56.92	$56.92

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMS320DM642AZDK5 Features

High-performance 500MHz fixed-point DSP.
TMS320C64x DSP core with VelociTI.2 extensions.
160kB on-chip memory with L1/L2 cache.
Supports multiple interfaces including Ethernet and PCI.
548-FCBGA package for surface mounting.

TMS320DM642AZDK5 Applications

Ideal for video processing applications.
Suitable for imaging system designs.
Used in high-performance embedded systems.
Supports audio and video synchronization.

TMS320DM642AZDK5 FAQs

5 frequently asked questions generated from this part’s specifications.

What is the clock rate of the TMS320DM642AZDK5?

The clock rate of the TMS320DM642AZDK5 is 500 MHz.

What type of processor is the TMS320DM642AZDK5?

The TMS320DM642AZDK5 is a Fixed Point Digital Signal Processor.

What is the operating voltage for the TMS320DM642AZDK5?

The operating voltage for the TMS320DM642AZDK5 is 3.3V.

What is the operating temperature range of the TMS320DM642AZDK5?

The operating temperature range is 0°C ~ 90°C (TC).

What package is the TMS320DM642AZDK5 supplied in?

The TMS320DM642AZDK5 is supplied in a 548-FCBGA (23x23) package.
