| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Rate | |
| Interface | |
| Lead Spacing | |
| Mounting Type | |
| Non | |
| On | |
| Operating Temperature | |
| Package Quantity | |
| Supplier Device Package | |
| Supplier Package | |
| Type | |
| Voltage |
The Texas Instruments TMS320DM640AGNZ4 is a high-performance fixed-point digital signal processor (DSP) from the TMS320DM64x family, optimized for video and imaging applications. This device features a 400 MHz clock rate, delivering up to 3200 MIPS (Million Instructions Per Second) for demanding processing tasks.
Key electrical specifications include a 3.3V operating voltage and 160kB of on-chip memory. The processor supports various interfaces such as I²C, McASP, and McBSP, facilitating integration into complex systems. Its instruction cycle time is as low as 2.5 ns, enabling rapid data manipulation.

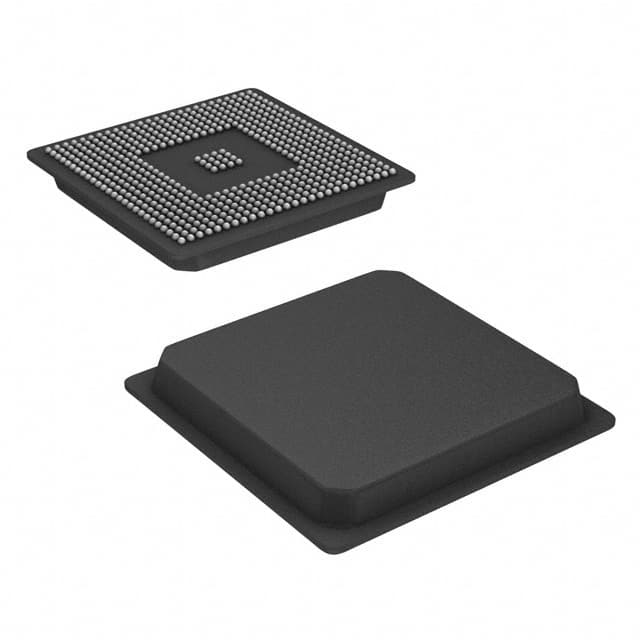

The TMS320DM640AGNZ4 is housed in a 548-FCBGA (Ball Grid Array) package, designed for surface mounting. It operates within a temperature range of 0°C to 90°C (TC), making it suitable for a variety of environmental conditions. The processor also supports an external memory interface with a total addressable space of up to 1024MB.
This DSP is part of the C64x generation, offering advanced Very-Long-Instruction-Word (VLIW) architecture. It is well-suited for applications requiring intensive signal processing, such as digital media processing, video encoding/decoding, and real-time imaging systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $46.12 | $46.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The clock rate is 400 MHz.
The operating temperature range is 0°C to 90°C (TC).
It is in a 548-FCBGA (27x27) package.
The operating voltage is 3.30V.
It supports I²C, McASP, and McBSP interfaces.
It has 160kB of on-chip memory.
